The Aruba 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to mobile-first networks.
Robust virtualization with AllianceOne solutions, hitless failover, QoS, and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the Aruba 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
Specifications
Differentiator

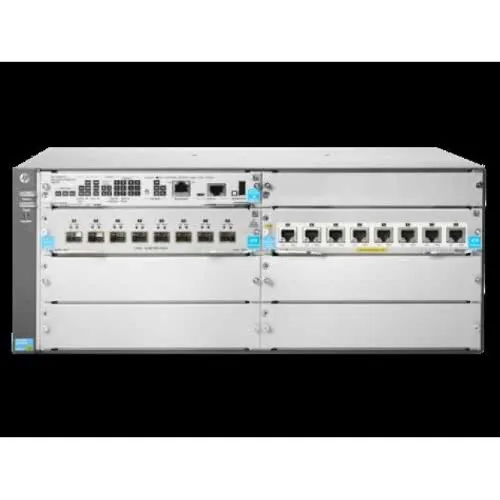

Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2 Switch bundle provides one 8-port HP Smart Rate Multi-Gigabit module and one 8-port 10GbE SFP+ module installed in a 5406R 6-slot chassis. It has four open slots.
Ports
(8) RJ-45 HP Smart Rate Multi-Gigabit ports
(8) open 10GbE SFP+ transceiver slots
(4) open module slots
Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Memory and processor
Freescale P2020 dual core @ 1.2 GHz
16 MB flash
1 GB SD Card
4 GB DDR3 SODIMM
Latency
1000 Mb Latency: 10 Gbps Latency: 40 Gbps Latency:
Throughput
up to 571.4 Mpps
Routing/switching capacity
960 Gbps
Switch fabric speed
1015 Gbps
Management features
Aruba AirWave Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
SNMP manager
Out-of-band management (serial RS-232C or micro USB)
| Product Description | HPE Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2 - switch - 16 ports - Managed - rack-mountable |
| Device Type | Switch - 16 ports - Managed |
| Enclosure Type | Rack-mountable 4U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1/2.5/5/10GBase-T (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Routing/switching capacity: 960 Gbps � Throughput: up to 571.4 Mpps � Switching fabric bandwidth: 1015 Gbps |
| Capacity | IPv4 routing table entries: 10000 � IPv6 routing table entries: 5000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON |
| Features | Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Dimensions (WxDxH) | 44.45 cm x 45.09 cm x 17.53 cm |
| Manufacturer Warranty | Limited lifetime warranty |
