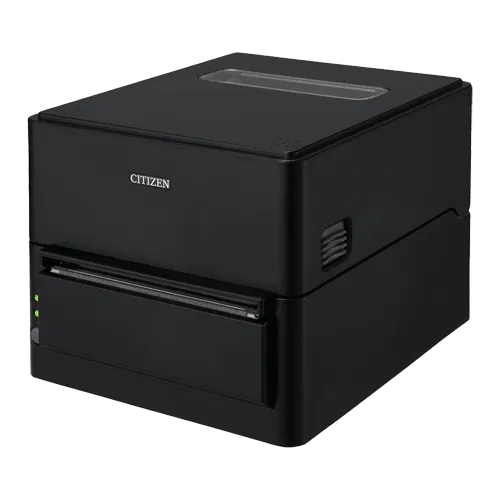

CT-S4500 4" Thermal Printer USB Interface Black

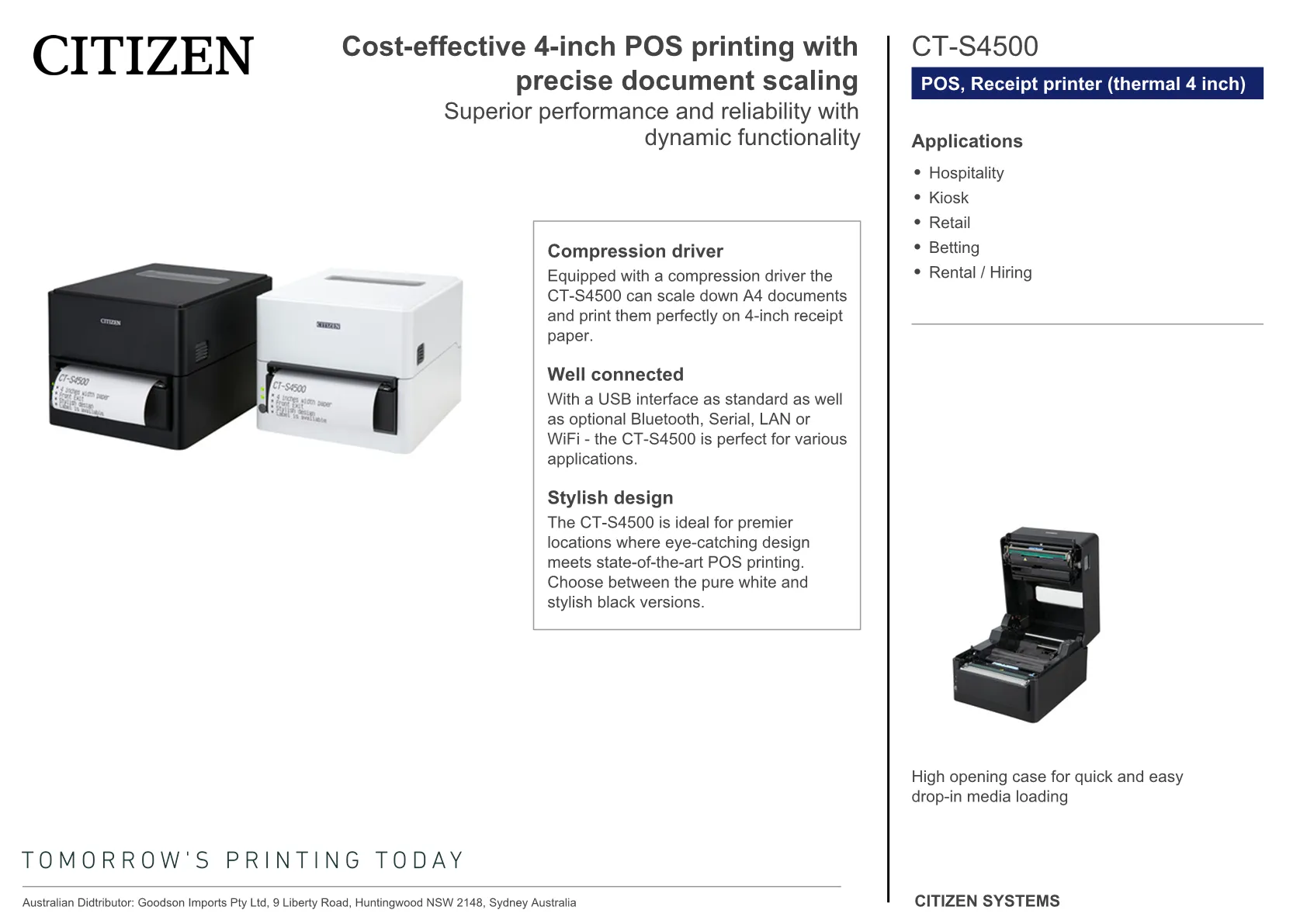

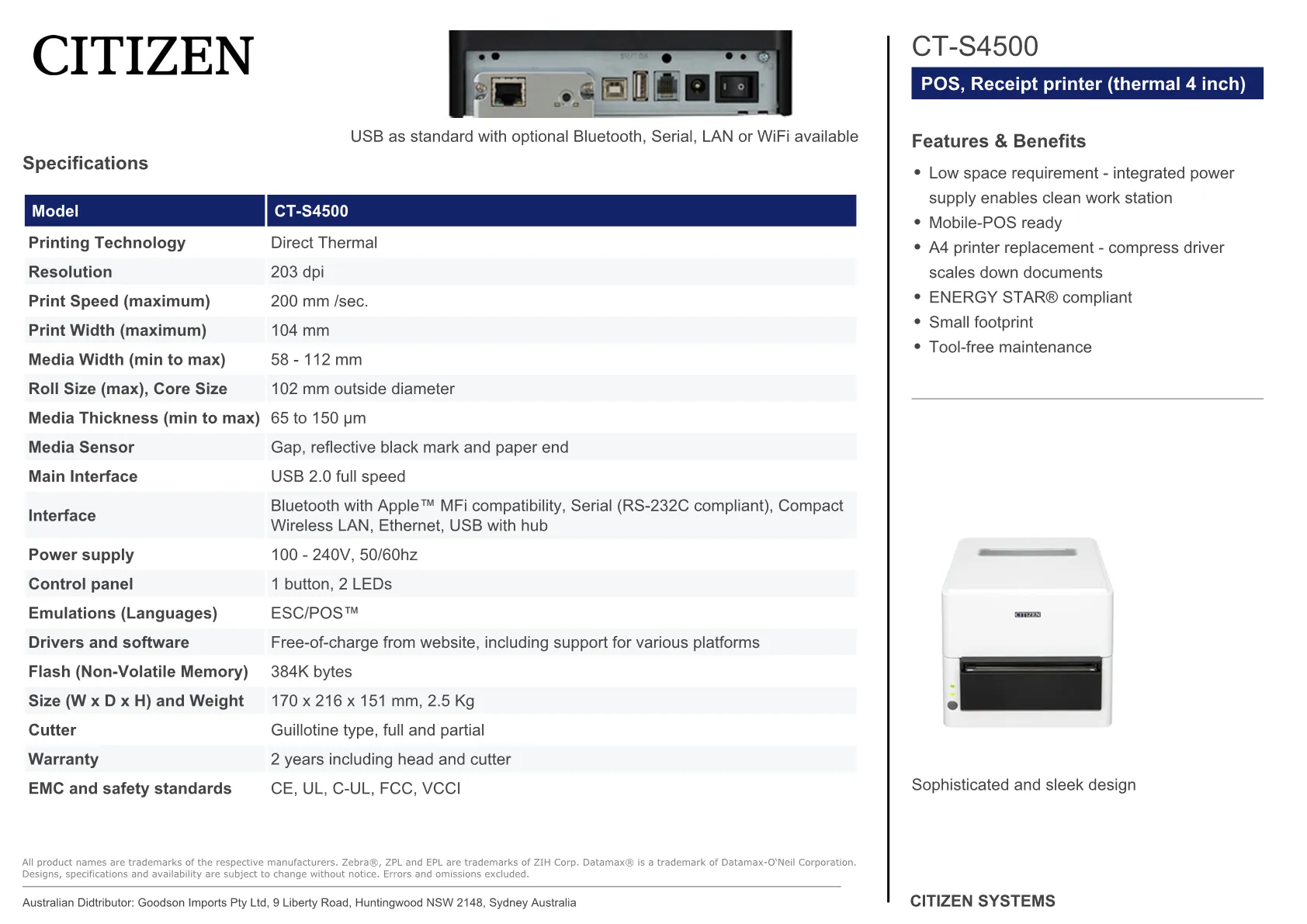

ct-s4500-en-datasheet.pdf
| Printing Method | Line thermal dot printing |
| Printing Width | 104mm |
| Dot Pitch | 8 × 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | Max. 200 mm/sec |
| Number of Columns | On 112mm paper up to 69 digits (12 x 24 font A) On 112mm paper up to 104 digits (8 x 16 font C) On 112mm paper up to 92 digits (9 x 17 font B) |
| Character Size | Font A:1.50 ×3.00 mm (12 x 24 Dots) Font B:1.13 ×3.00 mm (9 x 24 Dots) Font C: 1.00 x 2.00 mm (8 x 16 Dots) |
| Character Table/Code Pages | Alphanumeric International characters Kana Kanji (JIS level 1, level 2) Katakana Thai code18 WPC1252 437, 850, 852, 857, 858, 860, 863, 864, 865, 866 15 codepages, 17 country tables |
| Bar-code Type | UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8), Codabar, ITF, CODE39, CODE128, CODABAR(NW-7), CODE93, PDF 417, QR Code, GS1-Databar, Composit Symb, Code3of9 |
| Line Spacing | 4.23mm (1/6 inch) (changeable using commands) |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 58 - 112 mm (min to max) |
| Paper Roll Diameter | Paper roll: Max Ø 102.0 mm |
| Paper Thickness | 65 to 150 µm (min to Max) |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | Guillotine, Partial cut or Full cut |
| Indicators/Controls | Power Light & Error Light Buzzer |
| Emulation | ESC/POS |
| Print Buffer | 4K bytes / 45 bytes |
| NV Memory | 384 Kb (capable of storing user-defined characters and logos) |
| Sensors | Black mark sensor (Photo interrupter) Paper near end Sensor Label gap sensor |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | N/A |
| Interfaces | USB on-board Optional: Bluetooth with Apple™ MFi compatibility Serial (RS-232C compliant) Compact Wireless LAN Ethernet USB with hub |
| Driver available | Windows Drivers, OPOS Drivers, JAVAPOS Driver, POS for .net Driver, CUPS Driver for Linux/Mac OSX |
| Software Utilities | Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc. |
| Power Supply | Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA Rated output: DC24 V, 2.0 A |
| Power Consumption | Approx. 70 W (normal printing), 3W (standby) |
| External Dimensions (WxDxH) | 170 x 216 x 151mm |
| Weight | 2.5Kg |
| Operating Environment | 5 to 40°C, 35 to 90% RH (No condensation) |
| Storage Environment | -20 to 60°C, 10 to 90% RH (No condensation) |
| Reliability | Print head life: 100 km, 1 × 108 pulses (At normal temperature/humidity with recommended paper used) Auto cutter life:1 million cuts (At normal temperature/humidity with recommended paper used) |
| EMC/Safety Standards | UL, C-UL, FCC Class A, TÜV-GS, CE Marking, C-Tick |
