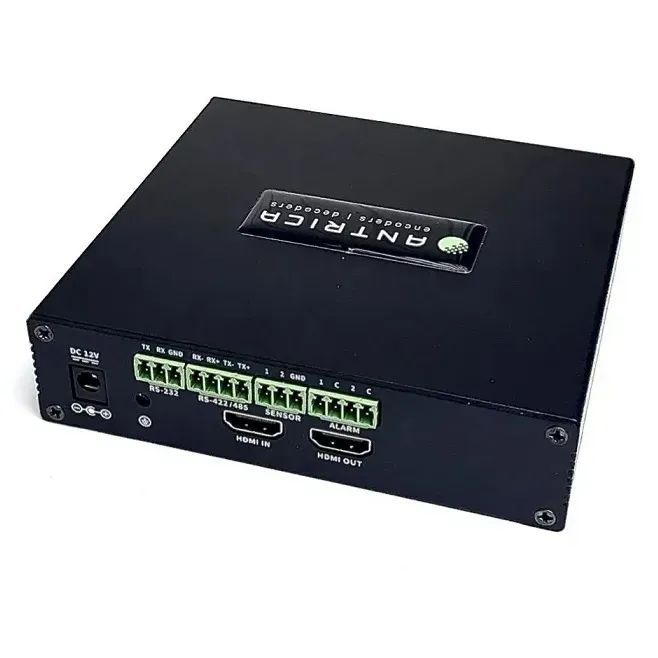

ANT-35100H ONVIF & VMS APPROVED H.265/4 HDP60 HDMI ENCODER
Product Overview
ANT-35100H is the replacement for ANT-35000H/H1 with additional H.265 option. This encoder has HDMI input and supports up to 1080P60 resolution.
H.265 has the added benefit of lower bit rates over a network. Input loop in / out allows the signal to pass through the encoder while still being able to be viewed locally.
Full ONVIF profile S,G&T , enabling integration with VMS software, such as Milestone / Exac etc. Multiple streaming formats are supported such as RTSP, MPEG-TS, RTP, RTMP over TCP and UDP.
The encoder has on board recording via USB for monitoring and litigation purposes. AAC and G711 two way audio is supported with embedded audio in HD-SDI & HDMI or analogue. RS232/485/422 2 way serial data communication, motion detection, sensor and alarm I/O.
PoE or DC 12v for power options and can be rack mounted (3 per rack). SRT with AES allows secure streaming and when paired with ANT-36100 is a secure SRT point to point transmitter / receiver.

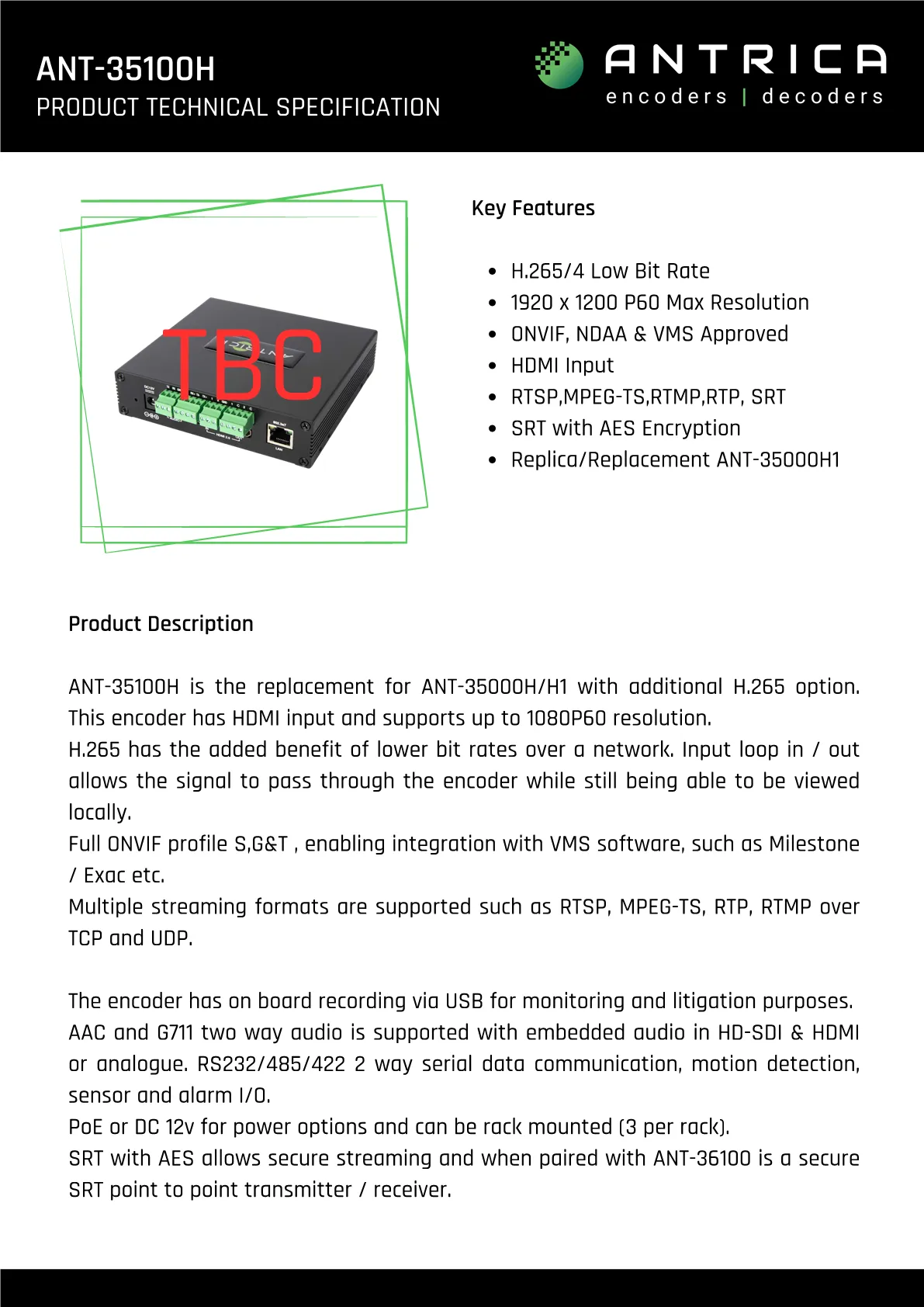

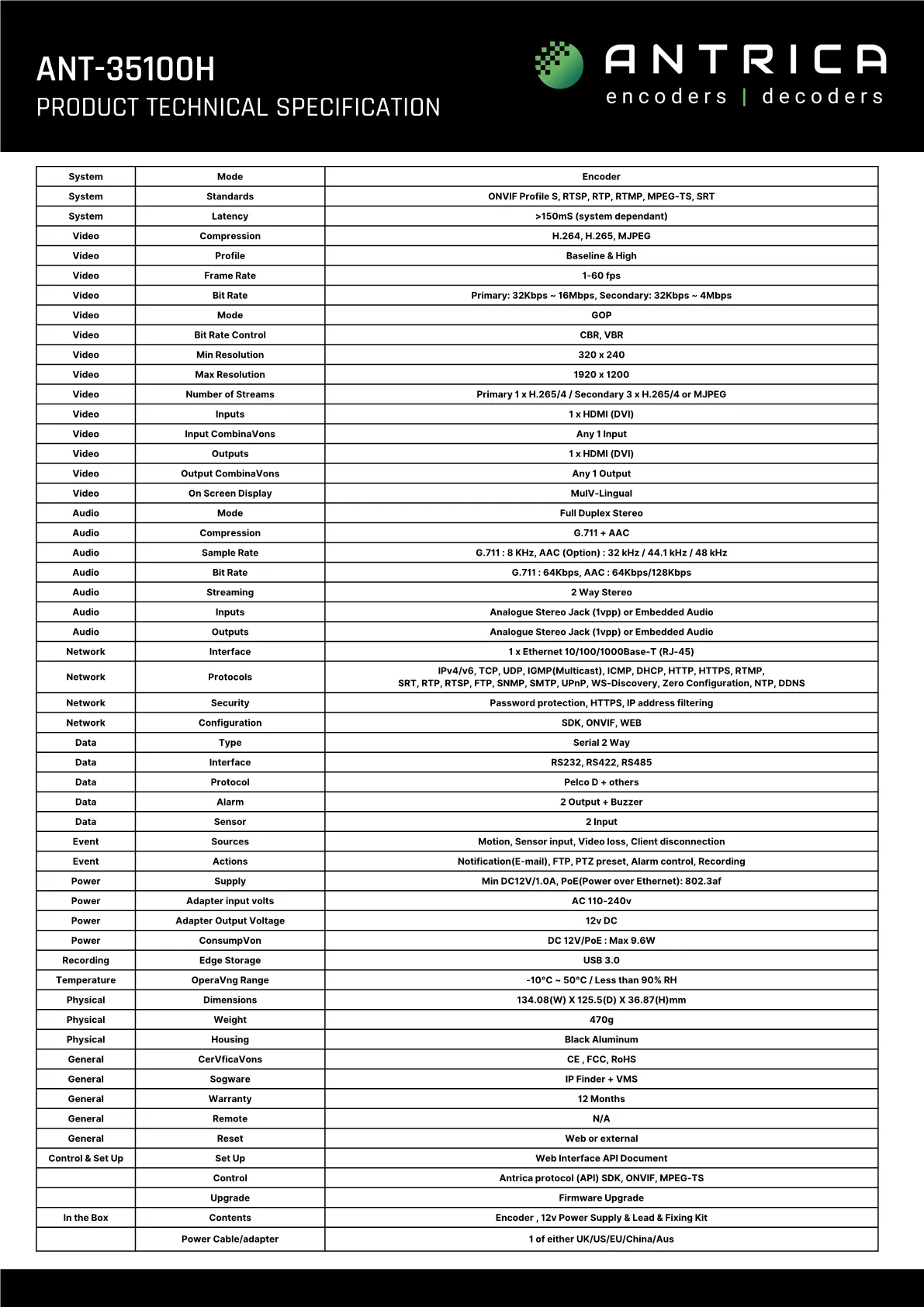

ANT-35100H-TECH-SPEC.pdf
