The QuickScan QM2131 cordless scanner is a entry level linear imager which provides the customer with the flexibility of scanning various 1D bar codes in a working area of 25.0 m / 82.0 ft away from the host. This scanner features a decent Depth of Field scanning range and an extra-wide scan angle creating long and sharp scan lines for reading long bar codes at a closer distance. The long life and fast-charging user replaceable battery supports longer working hours in between charging.
- QuickScan Mobile QM2131,
- 433 MHz,
- Kit,
- USB,
- Linear Imager,
- Black (Kit inc. Imager and Base Station and USB Cable 90A052258.)
| Scan Engine | Linear Imager |
| Light Source | Red LED 610 - 650 nm |
| Scan Pattern | Single Line |
| Scan Rate | 400 reads/sec |
| Motion Tolerance | N/A |
| Image Capture | N/A |
| Capture Area | N/A |
| Contrast Ratio | Minimum 25% |
| Resolution | 0.102 mm / 4 mils (Linear Barcodes) |
| Depth of field | 4 mils - 3.0 to 11.0 cm 5 mils - 2.0 to 15.0 cm 7.5 mils - 2.0 to 25.0 cm 10 mils - 2.0 to 36.0 cm 13 mils - 1.0 to 45.0 cm 20 mils - 4.0 to 70.0 cm Performance may be impacted by Bar code quality and environmental conditions |
| Tilt Angle | +/- 45° |
| Pitch Angle | +/- 65° |
| Skew Angle | +/- 70° |
| Ambient Light Immunity | 0 to120,000 Lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites |
| Programming Method | Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin™: Windows configuration program |
| Driver available | JavaPOS, OPOS Utilities |
| Indicators/Controls | Beeper (Adjustable Tone and Volume) Datalogic’s "Green Spot" Good read feedback Good read LED |
| Operating Modes | Trigger, Auto-Trigger |
| Communication Type | Star 2.0 Cordless System |
| Communication Technology | 433 MHz Radio Frequency Point to Point Configuration Open Air Radio Range: 25 m |
| Interfaces | To Base : USB, Keyboard Wedge & RS232 Multi Interface |
| Supply Voltage | 4.75 - 14 VDC Battery: Li-ion 1400mAh, Charge time with external Power supply 4 Hrs at 12V Reads per charge: 30000+ |
| Power Consumption | N/A |
| Drop Specification | Designed to withstand repeated 1.5m drops to concrete |
| Environmental Sealing | IP42 |
| ESD Protection | +/- 16 kV air discharge |
| Operating Environment | 0° ~ 50°C, Relative Humidity up tp 90% none condensing |
| Storage Environment | -40° ~ 70°C, Relative Humidity up tp 90% none condensing |
| EMC/Safety Standards | |
| External Dimensions (WxDxH) | Scanner: 41 x 91 x 163 mm |
| Weight | Scanner 190 g Base 215 g |
| Warranty | 3 year factory warranty (not on cable) |

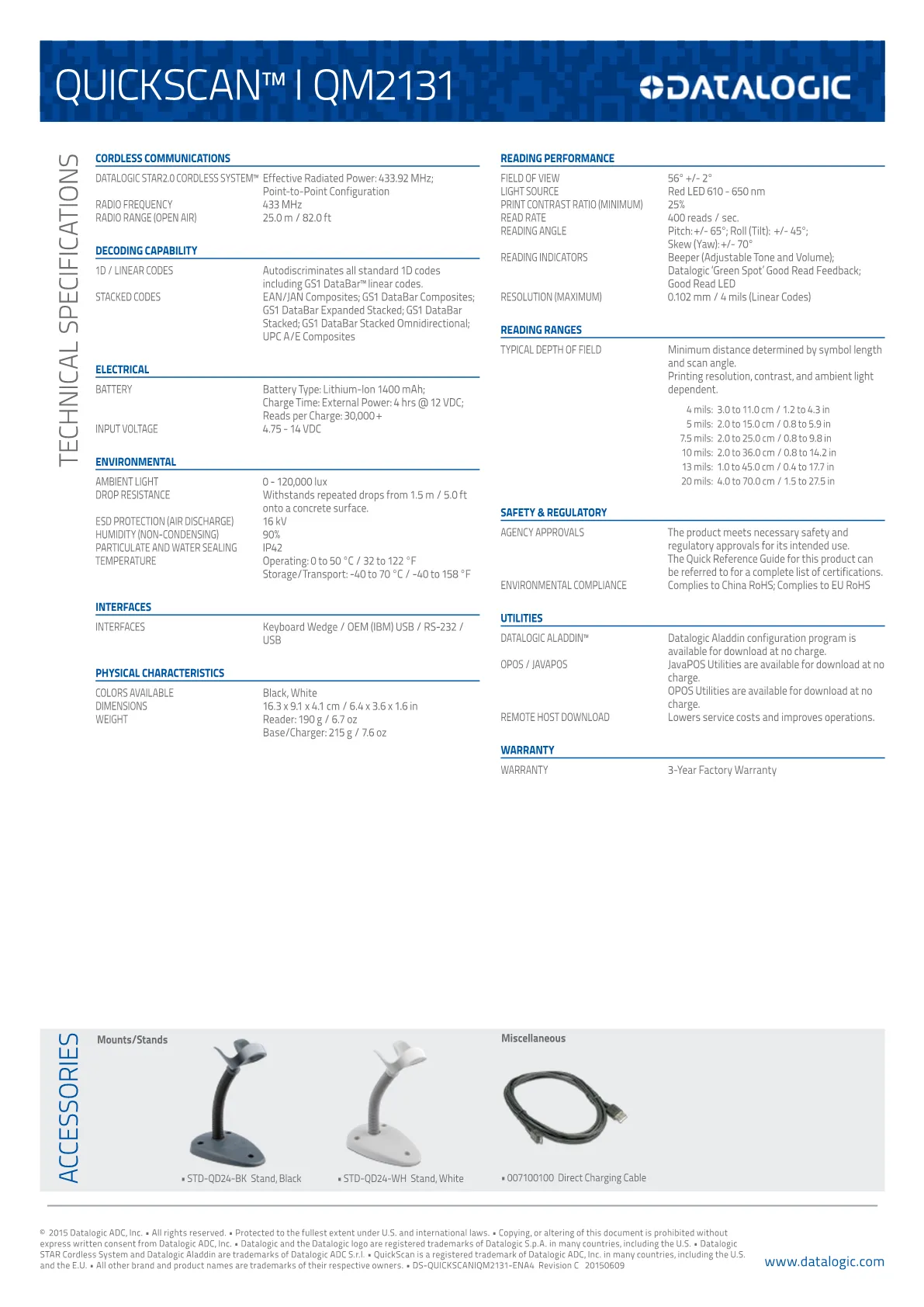

Datalogic-QuickScan-I-QM2131.pdf
