CINO F-790 WIFI Linear Imager with Display, function Keys & Vibration Motor. Preloaded with some applications. Charging Cradle, Power Supply and USB Cable.
- Solid State Linear Imager Technology, No moving parts!
- Enterprise-class 802.11b/g wireless Connectivity
- Supports latest wireless LAN security: WEP, WPA and WPA2
- Built-in 2” crystal clear colour display
- two function keys and a navigation key
- Smartphone-like virtual keyboard is available to fulfil comprehensive alphanumeric data entry
- Blue link and 2-colour status indicators for clear operator feedback
- Built-in Vibration Motor is ideal for noisy and quiet environments
- Host acknowledgement function guarantees the data integrity for online real-time transmission
- Optional input fields and transmission sequence are available for batch operation
- Long range model and high performance with laser aimer model are available
- Ultimate WaveCentre software for robust application development
| Scan Engine | Linear Imaging Engine |
| Light Source | 630 nm visible red LED |
| Scan Pattern | Single Line |
| Scan Rate | Dynamic scanning rate up to 500 scans/sec |
| Contrast Ratio | 10% minimum reflective difference |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Depth of field | More then 60 cm on 100% UPC/EAN symbols More then 86 cm on 20 mil code 39 |
| Tilt Angle | +/- 55 deg. |
| Pitch Angle | +/- 65 deg. |
| Skew Angle | +/- 65 deg. |
| Ambient Light Immunity | 0 ~ 100000 Lux |
| Symbologies supported | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
| Programming Method | Bar code command Windows Utility - Fuzzyscan Powertool Condensed Data Wizard via bar code command Full featured Data Wizard via Fuzzyscan Powertool |
| Indicators/Controls | 2" QVGA backlit Colour Display 2 Function Keys. one 5 way Navigation Key Blue Link Indicator and 2 Colour Status indicators Programmable Beeper & Vibrator |
| Operating Modes | Trigger |
| Communication Type | Wifi Cordless |
| Communication Technology | IEEE 802.11b/g Operating modes: Infrastructure mode, Ad-hoc mode Communication Range: up to 150 m in open space Security: WEP, WPA, WPA2 (Ad-hos mode supports WEP only) |
| Interfaces | N/A |
| Supply Voltage | 5VDC ±10% Battery: 3.7V, 2600mAH Li-ion Rechargeable Charge Time: 4-5 Hours for full charge |
| Power Consumption | Charging : Typical 680 mA @5VDC Operating : Typical 85 mA @5VDC with external Power supply |
| Drop Specification | Withstands multiple drops at 1.8 m to concrete |
| Environmental Sealing | IP41 |
| ESD Protection | N/A |
| Operating Environment | -10 to 50 °C RH 5% ~ 95% non condensing |
| Storage Environment | -40 ~ 70 °C RH 5% ~ 95% non condensing |
| EMC/Safety Standards | FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI) LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam) |
| External Dimensions (WxDxH) | 70.5 x 95 x 160.5mm |
| Weight | 211g including battery |
| Warranty | 1 Year Factory Warranty (not on cable, conditions apply) |

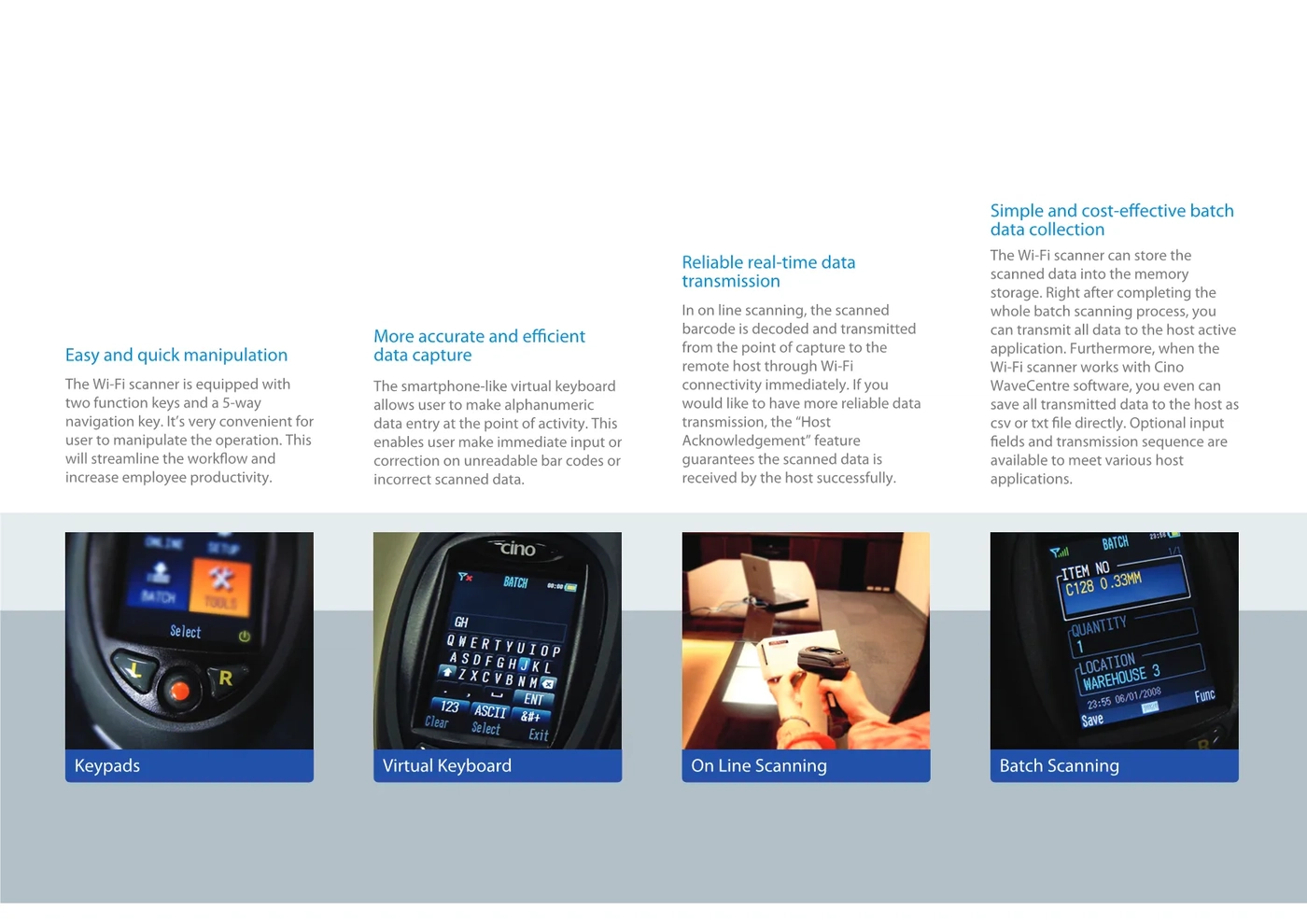

f790wd_brochure.pdf
