CINO F780 USB Cable & Smart stand Black
1 x GPHS78001000K05 Scanner
1 x Stand
1 x GPHS78001000K05 Scanner
1 x Stand
- Solid State Linear Imager Technology, No moving parts!
- Rugged and compact design
- Supports GS1 DataBar
- Bright Sharp Aiming Line
- Fast Decoding Rate
- Optical and Audible Read Confirmation
- Exceptional Read Performance
- Manual, Presentation Mode or Auto Trigger
- Universal interface
- Reads Degraded and damaged bar-codes
- Powerful, Flexible Architecture
- Embedded outstanding DataWizard to meet most of the data editing requirements
- This model replaces the F-760 Series
| Scan Engine | High Performance Linear Imaging Engine |
| Light Source | 630 nm visible red LED |
| Scan Pattern | Single Line |
| Scan Rate | Dynamic scanning rate up to 500 scans/sec |
| Contrast Ratio | 20% minimum reflective difference |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Depth of field | More then 60 cm on 100% UPC/EAN symbols More then 86 cm on 20 mil code 39 |
| Pitch Angle | +/- 65 deg. |
| Skew Angle | +/- 65 deg. |
| Ambient Light Immunity | 0~100000 Lux |
| Symbologies supported | Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
| Programming Method | Bar code command Windows Utility - Fuzzyscan Powertool Condensed Data Wizard via bar code command Full featured Data Wizard via Fuzzyscan Powertool |
| Indicators/Controls | 3 LED's for Power, good read, and Status Indicators Programmable Beeper Optional Vibrator (Special Order with MOQ) |
| Operating Modes | Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation. |
| Communication Type | Corded |
| Interfaces | PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation |
| Supply Voltage | 5VDC ±10% |
| Power Consumption | Operating : Typical 180 mA @5VDC Standby : Typical 80 mA @5VDC |
| Drop Specification | Withstands 50 drops at 1.8 m to concrete Withstands 10 drops at 2 m to concrete |
| Environmental Sealing | IP41 |
| ESD Protection | Functional after 15kV discharge |
| Operating Environment | -10 to 50 °C RH 5% ~ 95% non condensing |
| Storage Environment | -40 ~ 70 °C RH 5% ~ 95% non condensing |
| EMC/Safety Standards | FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI) LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam) |
| External Dimensions (WxDxH) | 70.5 x 97.8 x 156.2mm |
| Weight | 157g (excluding the cable) |
| Warranty | 2 Year Factory Warranty (not on cable, conditions apply) |

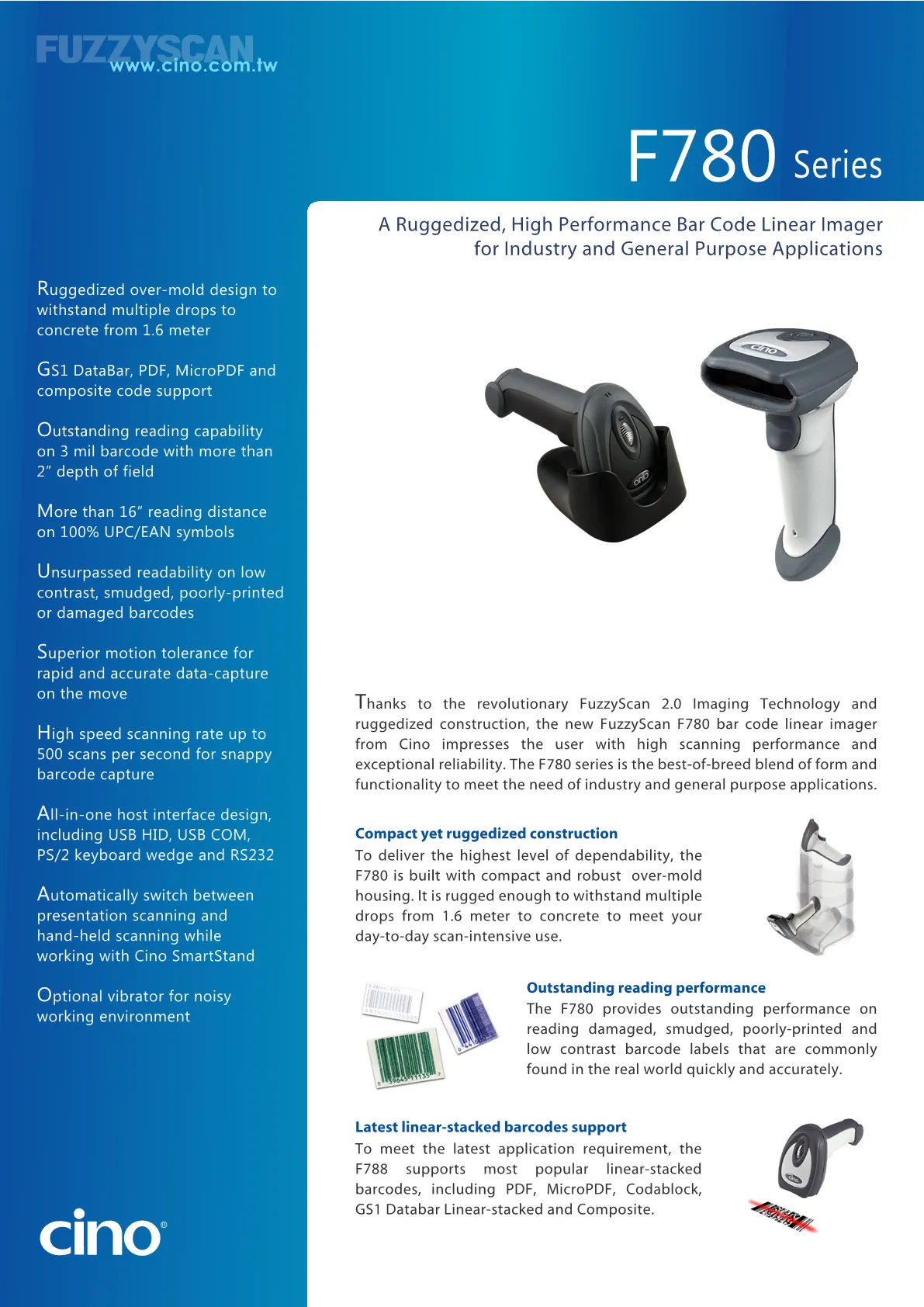

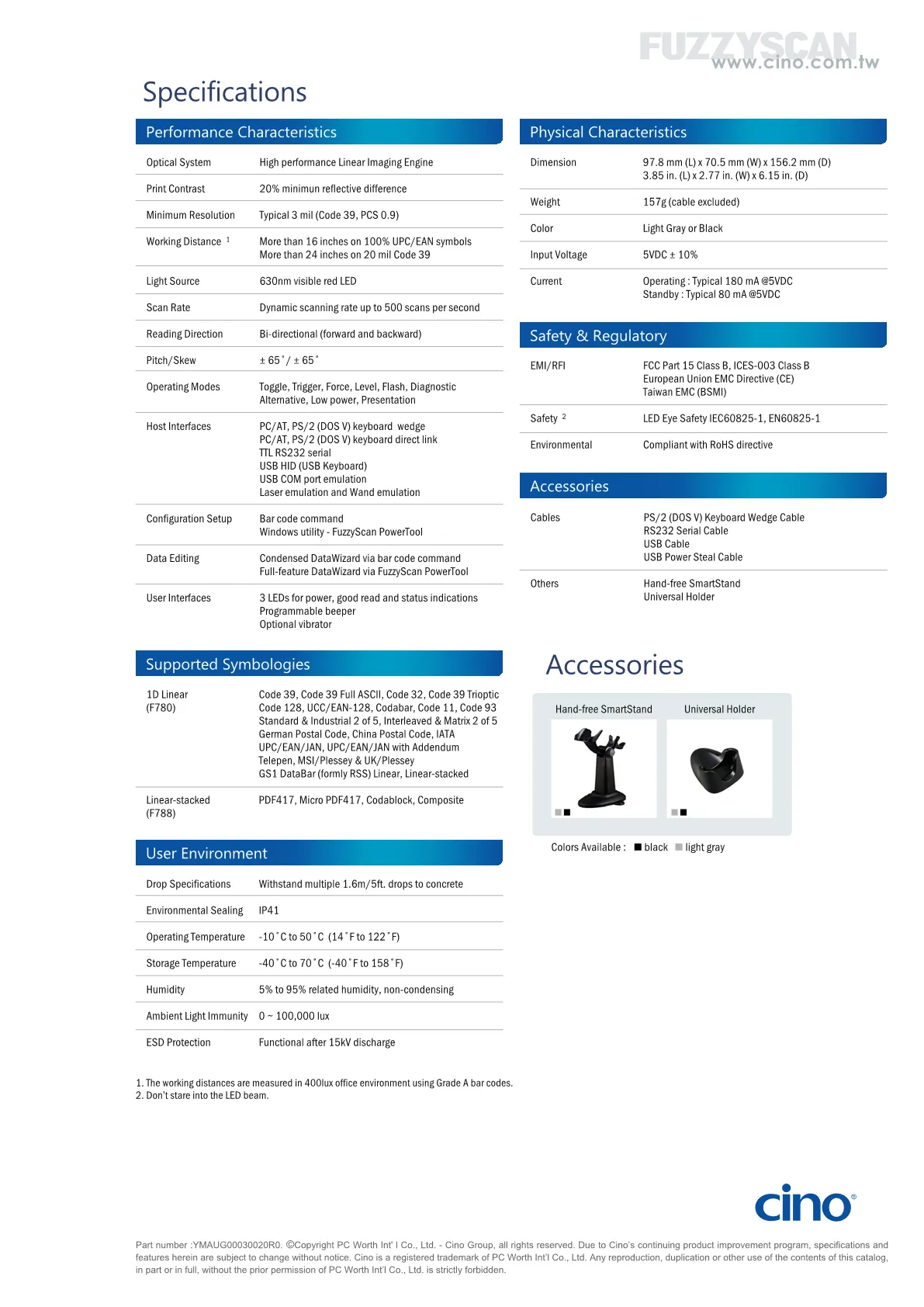

f780_brochure.pdf
