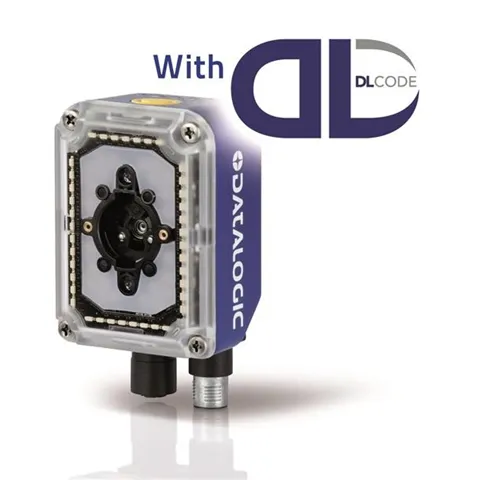

Datalogic Matrix 300N, 482-010, LQL-9, Multilight-DPM, Standard

The Matrix 300N is a ultra-compact image based bar code reader designed for performance on high speed and Direct Part Marking (DPM) applications.
The Matrix 300N is power by the new software DL.CODE, offering maximum customer ease of use.
The Matrix 300 combines a high resolution sensor with ultra-fast image acquisition: 1.3 megapixels, 60 frames per second.
Matrix 300N features a large variety of optical models, with manual focus position control or electronical.

Features & Benefits
•Ultra-compact reader, rotating connector system
•High performance DPM reading
•Profinet-IO communication embedded •Both manual and electronic focus control option •Integrated dual illuminator: dark field/bright field
•Fast and high resolution image sensor: 1.3 megapixels, ‘true’ 60 frame/s
•Packtrack 2D for short object gapping
•Power over Ethernet Option
•Extreme Industrial grade: IP67, 0-50°C operating temperature
•Precise dual laser aiming system

Applications

This product series has been developed to satisfy to requirements of the following applications:

Manufacturing, Electronics and Automotive
- DPM code validation after marking
- Work-in-progress control
- Parts and assemblies traceability
- Food and Beverage
- Work-in-progress traceability
- High speed process control Automated Warehouse
- End-of-Line traceability
- Reusable totes identification Medical
- Medical device traceability
- Clinical Lab Automation
- Biomedical analysis machines
- Specimen collection machines
