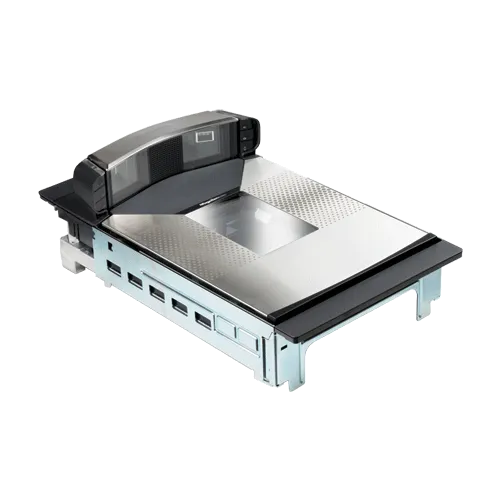

MGL9800i, AU Scanner Scale with Display, Long Flange, Sapphire Glass, EAS, Single Display, No TDR, AU Brick, S/C RS-232 Cable
- Advanced digital imaging in all reading planes
- Seamless reading of 1D and 2D codes in all planes with good-read audio and visual confirmation for fast, uninterrupted scanning
- Optional Top Down Reader (TDR) adds large topside field-of-view as well as a customer-facing mobile device reader
- The largest ever All-Weighs™ scale platter enables effortless, accurate weighing of long or bulky items
- ScaleSentry™ Shrink Monitoring/Prevention System reduces losses from oversized items outside the weighing surface
- Low bonnet height allows for accessibility and flexibility in checkstand layout
- Top side accessible service port allows for the product to stay in the counter for most service calls (including software upgrades)
- Illumix™ Intelligent Illumination Technology designed for digital imaging in retail
| Scan Engine | Omni-Directional Area Imager Scanner |
| Light Source | Multiple Diffused LED's. Orientation and wavelength optimized for eye comfort |
| Scan Pattern | Seamless reading of Linear and 2D codes in all planes (6 sides) |
| Scan Rate | N/A |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF GreyScale: 256, 16, 2, JPEG, TIFF |
| Contrast Ratio | Min. 25% |
| Resolution | 5 mil |
| Depth of field | Read Height 15.2 cm |
| Tilt Angle | 360° |
| Pitch Angle | 360° |
| Ambient Light Immunity | 0 - 86,080 lux |
| Symbologies supported | 1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes 2D:Aztec Code; Data Matrix; Micro QR Code; QR Code Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites |
| Programming Method | Magellan On-Screen Programming (OSP) configuration software is available for download at no charge. Remote Management Capabilities: WMI (OPOS and JavaPOS) and MBeans (JavaPOS) compliant Host Download: Supports IBM Director, Wavelink Avalanche™ and other ERP Management Solutions. |
| Driver available | JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
| Indicators/Controls | Audio: 85dB Speaker, adjustable Tone & Volume, supports WAV file formats Visual: Good Read confirmation for all reading planes, Scale center of zero, ScaleSentry™ Event, Sensormatic EAS Status |
| Communication Type | Corded |
| Interfaces | IBM 46xx, RS232, OEM IBM USB, Powered USB, Single cable RS232 Scanner/Scale |
| I/O Ports | Powered RS232 Aux Port Powered USB host Type A x 2 EAS Controller Port Sensormatic, Interlock Remote Scale Display port Scale Host Port |
| I/O Devices (Intergrated) | Scale (Model Dependent): Capacity: 15 kg Maximum Static weight 68 kg Minimum Increment: 0.005 kg Vibration Immunity: 4 Programmable Filter settings Adjustments required: Calibration |
| Supply Voltage | AC Input: 100-250 VAC, 50-0 Hz |
| Power Consumption | Nominal 12 Watts, Sleep mode 11 Watts |
| ESD Protection | 25 kV |
| Operating Environment | 10 ~ 40 °C RH: 5-95% Non Condensing |
| Storage Environment | -40 ~ 70 °C RH: 5-95% Non Condensing |
| EMC/Safety Standards | The product meets necessary safety and regulatory approvals for its intended use. Complete list in Quick Reference guide Complies to EU RoHS, Complies to China RoHS, Complies to R.E.A.C.H., EC1907/2006 |
| External Dimensions (WxDxH) | Width: 29.2 cm Depth Below the Counter: 10.6 cm Height Above the Counter: 6.8cm Length: 9801 Short Scanner only 35.2 cm 9803 Medium Scanner only 39.9 cm 9804 Medium Scanner/Scale 39.9 cm 9806Long Scanner/Scale 50.7 cm |
| Weight | Long Platter Scanner/Scale 8 Kg |
| Warranty | 1-Year Factory Warranty |
