- Smart, wired security keyboard with integrated chip card terminal
- Secure PIN entry
- PC/SC smartcard reader
- Protocols: T=0, T=1, S=8, S=9, S=10
- EMV 2000 Level 1 approved
- CCID compatible
- Reading/writing ISO 7816 compliant smartcards
- Flat design, low smart card contacting unit
- Satisfies requirements defined by FIPS-201
- German version with DIN/GS compliant layout
- Driver support for Windows/MacOS-X/Linux
- One-handed operation of smart card module
- German version complies with BGI 650 guidance for ergonomics
- Awarded the "Blaue Engel" environmental seal
| Keyboards | Key technology: LPK Technology Service life, standard key: > 10 million key operations Number of Keys: 104 + 4 |
| I/O Devices (Intergrated) | Smart Card Reader: Mechanical Type Hardware Interface USB Agency Approvals: EMV 2000 Level 1 Chip-card Protocols: T=0, T=1, S=8, S=9, S=10 Contact: Mechanical Swipe Reader Software Interface: CT-APi, PC/SC Mating Cycles: Approx. 100,000 operations Compatible Chip CArd types: Reads & Writes on all ISO 7816 cards Transmission Speed Reader to Card 420 kBits/Sec Transmission Speed Reader to system: 12MBits/sec Chip card pulse frequency: 4.8 MHz |
| Interfaces | USB |
| Cable Lenght | approx. 1.80 m |
| Current Consumption | typ. 100 mA |
| Operating Environment | 0°C to 50°C |
| Storage Environment | -20°C to 65°C |
| External Dimensions (WxDxH) | approx. 458 x 188 x 46 mm |
| Weight | 0.84 Kg |
| Reliability | > 10 mill Key operations MTBF >80,000 Hours |
| Product Compliance | C-tick, CE, FCC, VCCI, VDE GS, cURus |
| Warranty | 2 Year limited factory warranty |

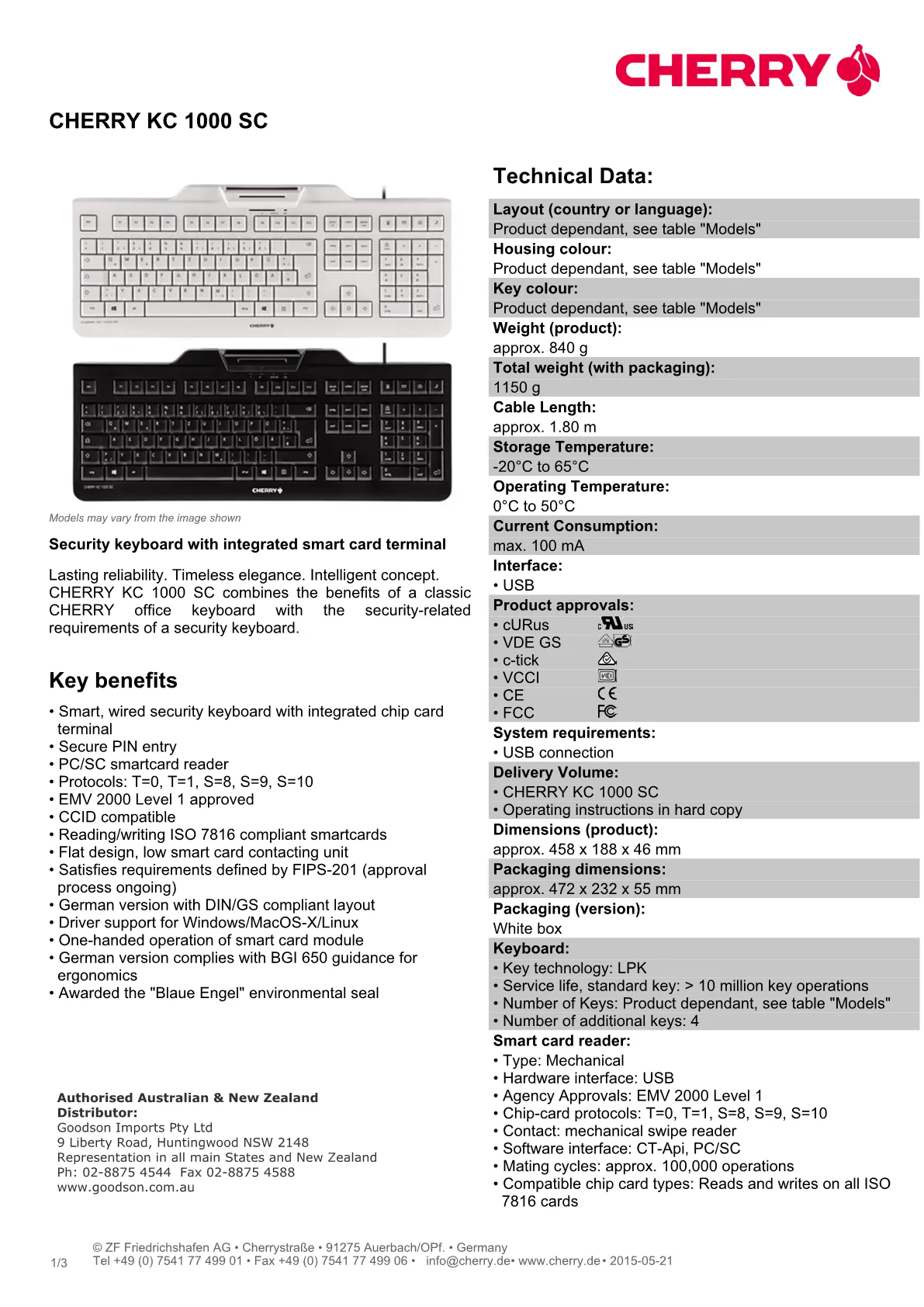

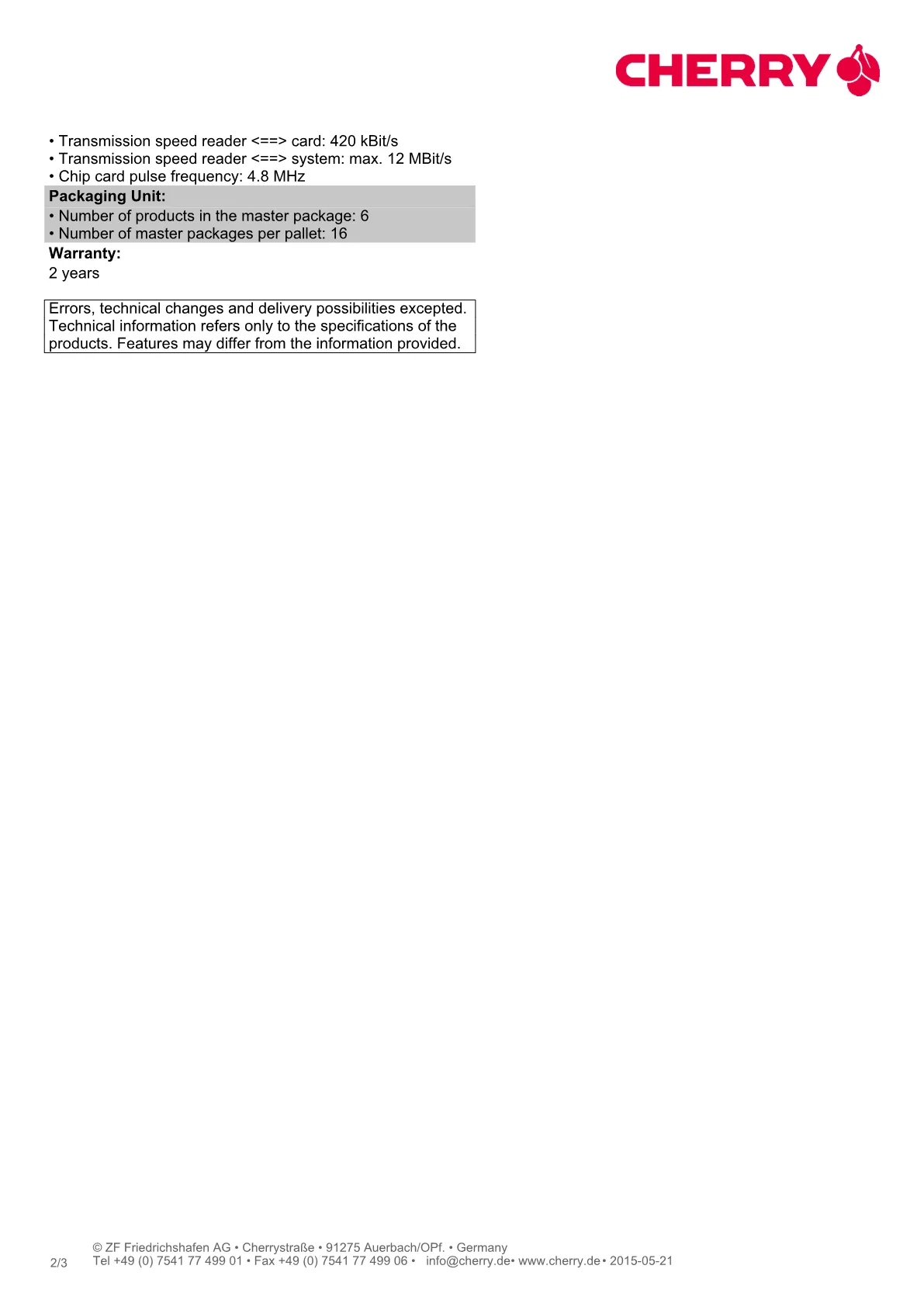

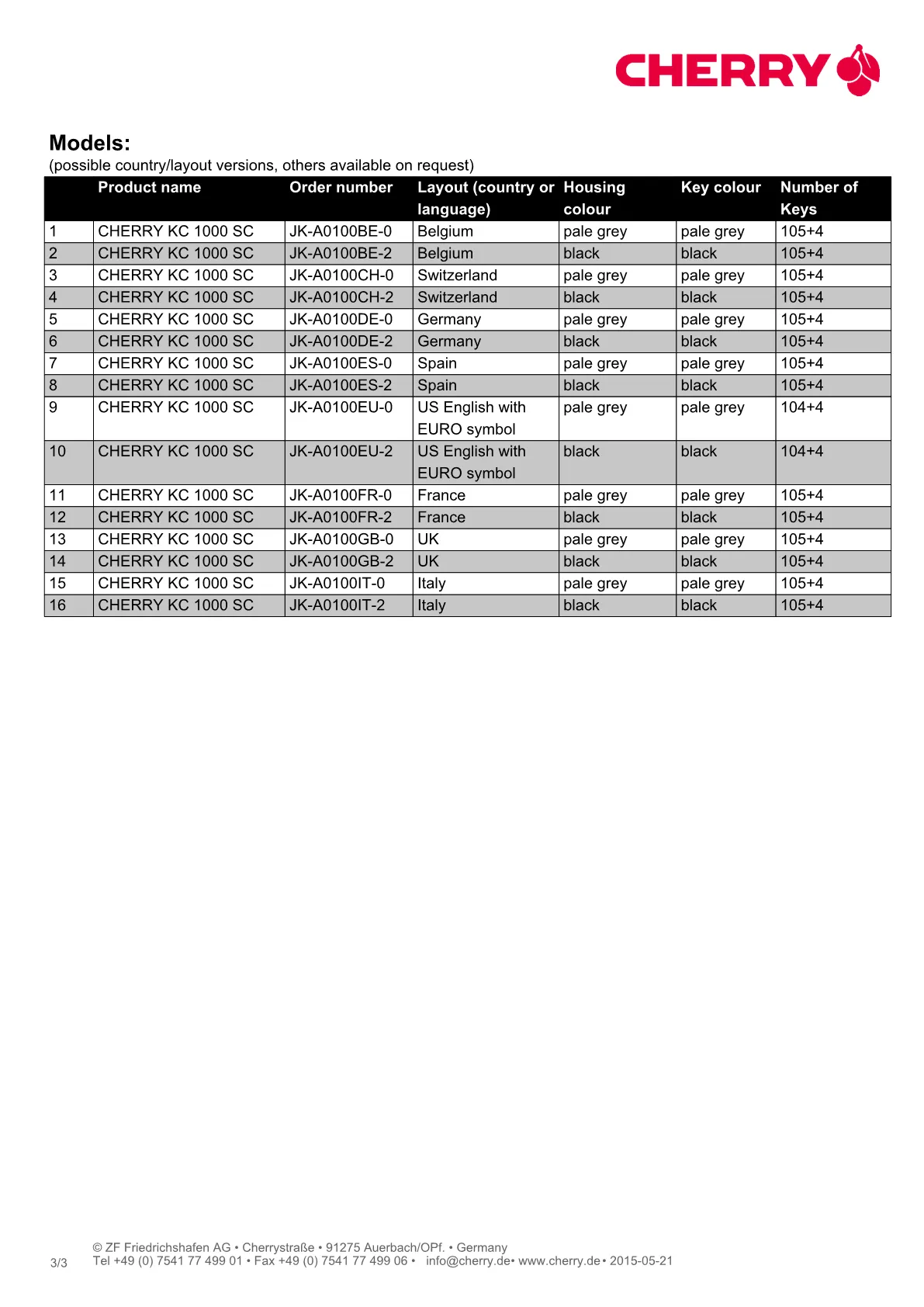

chjk-a0100_datasheet.pdf
