New Zealand Stock & Warranty
All our products are New Zealand stock and come with a full manufacturer's warranty
- Intelligent security keyboard with integrated reader for smart cards and cards/tags with RF/NFC interface
- Secure mode with authentication and encryption, especially with thin clients
- PC/SC smart card reader, CCID compatible
- Protocols: T=0, T=1, T=CL
- Read/write with ISO 7816 and ISO 14443 A/B compliant cards
- Flat design, low smart card contacting unit
- Satisfies FIPS-201 requirements
- DE version with DIN/GS compliant layout and meets with BGI-650 ergonomics guide
- Standard drivers for Windows and Linux
- One-handed operation of smart card module
- Awarded the Blue Angel environmental seal
| Keyboards | Key technology: LPK Technology Service life, standard key: > 10 million key operations Number of Keys: 104 + 4 |
| I/O Devices (Intergrated) | Smart Card reader: Hardware Interface USB Chip-card Protocols: T=0, T=1 Contact: Mechanical Swipe Reader Software Interface: PC/SC, CCID Mating Cycles: Approx. 100,000 operations Compatible Chip Card types: ISO 7816 cards Transmission Speed Reader to Card 420 kBits/Sec Transmission Speed Reader to system: 12MBits/sec Chip card pulse frequency: 4.8 MHz RF/NFC Terminal Compatible cards: ISO 14443A/B, ISO 15693 Cards and Tags Range: < 5 cm NFC: ISO/IEC 18092 NFC Tags: 1-5 Anti Collision: First card detected is active |
| Interfaces | USB |
| Cable Lenght | approx. 1.80 m |
| Current Consumption | typ. 350 mA |
| Operating Environment | 0°C to 50°C |
| Storage Environment | -20°C to 65°C |
| External Dimensions (WxDxH) | approx. 458 x 188 x 46 mm |
| Weight | 0.84 Kg |
| Reliability | > 10 mill Key operations MTBF >80,000 Hours |
| Product Compliance | C-tick, CE, FCC, VCCI, VDE GS, cURus, FIPS 201 |

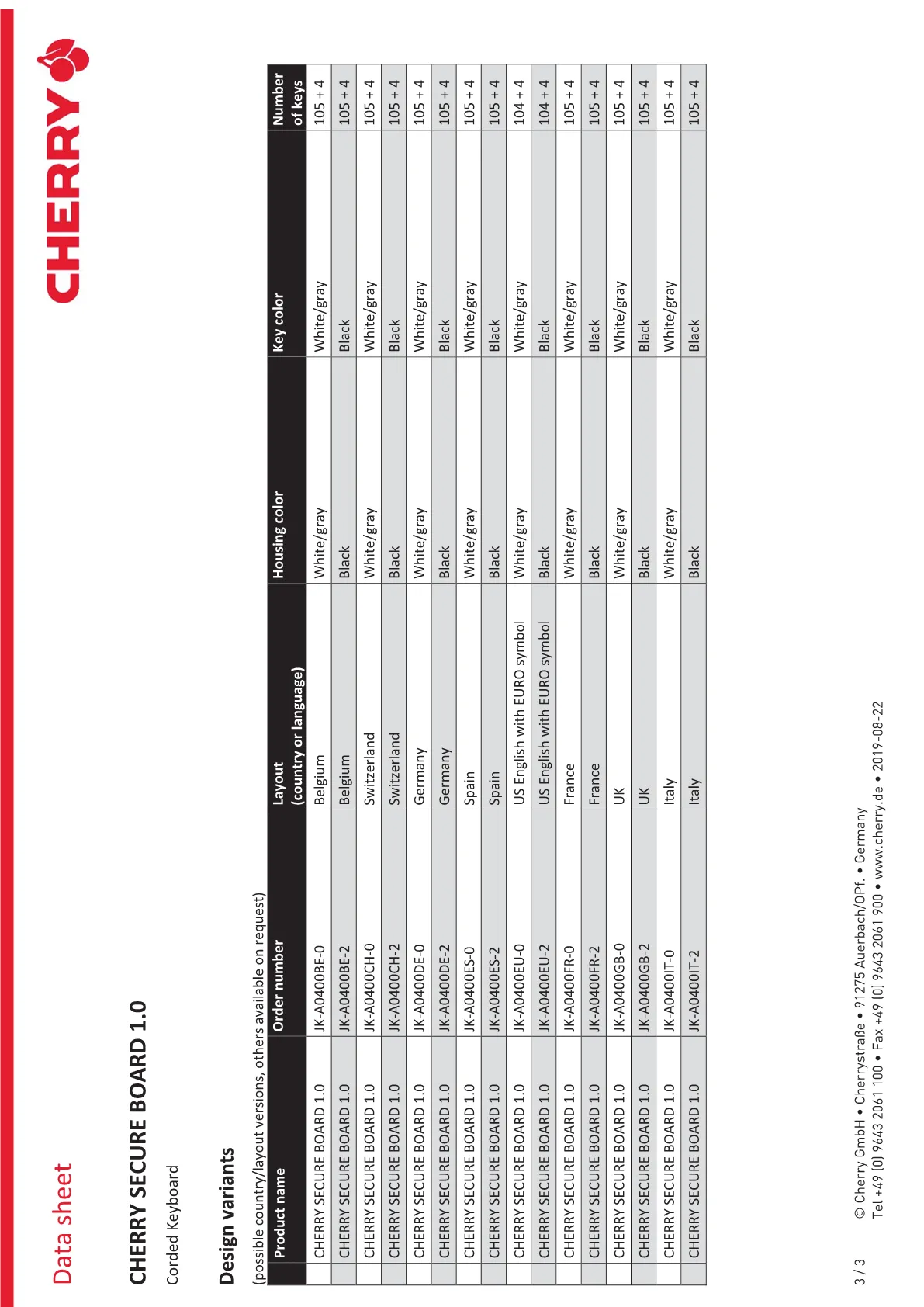

jk-a0400_datasheet.pdf
