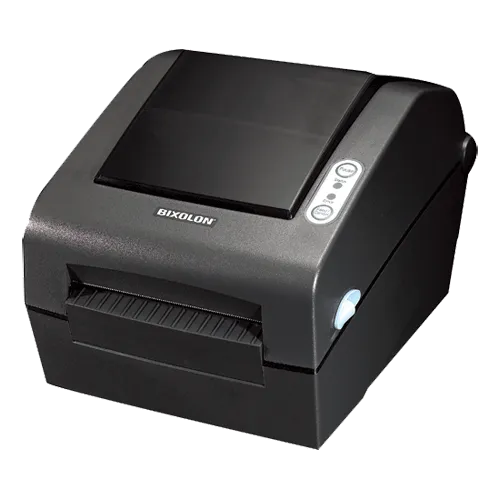

BIXOLON SLP-DX420 Direct Thermal 4" Label Printer. 203 dpi. RS232, USB & Parallel Interface, Black
- Direct Thermal Label Printer
- Fast Print Speed 7 inches Per Second (178mm per second) for 203dpi
- High speed USB 2.0 supported.
- High resolution 203 dpi (300 dpi optional ) printing
- Bigger memory capacity providing 128Mb flash memory & 64Mb SDRAM
- Short label (minimal height of label up to 6mm) printing supported
- Intelligent leap-over™ (Detect empty label and leap over next label automatically)
- Optional external paper supplier for bigger size of paper
- Lower power consumption, power save mode, EnergyStar Certified
- Free label design program Label Artist provided
| Printing Method | Direct Thermal |
| Printing Width | SLP-DX420: 108 mm SLP-DX423: 105.7 mm |
| Media width | Min. 20 mm to Max. 110 mm |
| Media Tickness | Min. 0.06 mm to Max. 0.20 mm |
| Sensors | Transmissive, Reflective (adjustable), Head open |
| Roll Diameter | Max Ø 130 mm |
| Dot Pitch | SLP-DX420: 203 dpi SLP-DX423: 300 dpi |
| Printing Speed (Max.) | SLP-DX420 Max. 178 mm/sec, 7 ips SLP-DX423 Max. 127 mm/sec, 5 ips |
| Bar-code Type | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 |
| Font | Character Sets: •10 SLCS Resident Bitmap Fonts • One SLCS Resident Scalable Font •16 BPL-Z™ Resident Bitmap Fonts • One BPL-Z™ Resident Bitmap Font • 5 BPL-E™ Resident Bitmap Fonts • 23 Code Page • Unicode supported (UTF-8, UTF-16LE, UTF-16BE) Graphics: Supporting user-defined fonts, graphics, formats, and logos |
| Emulation | SLCS, BPL-Z™, BPL-E™ BASIC interpreter for data stream processing and ticketing emulations. |
| Controls | Function |
| CPU | TBA |
| Memory | SDRAM: 64MB Flash (Non-Volatile Memory) 128MB |
| Interfaces | USB (2.0 full speed), RS-232C & Parallel interface or USB (2.0 full speed) & Ethernet (10/100) Can also have WLAN with USB Dongle |
| Auto Cutter | Optional |
| Driver available | Windows Driver (EURO Plus/Seagull™), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™ Android SDK |
| Operating Environment | Temperature: 0 to 40 °C Humidity: 10 to 80% (no condensation) |
| Storage Environment | Temperature: -20 to 60 °C Humidity: 10 to 90% (no condensation) |
| External Dimensions (WxDxH) | 194 × 243 × 171 mm |
| Weight | 2.20 Kg |
| Power Supply | 100-240V 50/60Hz |
| Warranty | 2 year on Printer, 6 months on Printhead |
slpdx420_brochure.pdf
