- Thermal Transfer Label Printer
- Ethernet LAN, USB & Serial interfaces as standard
- Compact size and overall footprint, to fit in small spaces
- One minute, tool-free maintenance: both head and platen can be replaced without tools
- Hi-Lift™ mechanism: full access for all operations including easy media / ribbon changing and sensor adjustment
- Adjustable media sensor as standard with label gap and black mark sensing
- Integral LinkServer™ web management enables easy operation and remote management of the printer
- Black or white case colours suitable for a wide variety of environments
| Printing Method | Thermal Transfer/Direct Thermal |
| Printing Width | Max. 104 mm (4.1 inches) |
| Printing Length | 6.4 – 2540 mm, 0.25 – 100 inches depending on emulation and resolution |
| Dot Pitch | 8 × 8 dots / mm (203 dpi) Optional 300 dpi (special Order CL-E331) |
| Printing Speed (Max.) | 8 inches per second (200 mm/s) at 203 dpi; 6 IPS at 300 dpi. |
| Font | NA |
| Character Table/Code Pages | NA |
| Bar-code Type | |
| Paper feed method | Friction Feed |
| Media Type | Continues Form, Gap Labels, Black Mark Sensing and punch hole sensing |
| Media width | 24 mm to 118 mm (0.94 inches to 4.65 inches) |
| Paper Roll Diameter | Max Ø 125 mm with 25 to 38 mm Core |
| Media Tickness | 63.5 µm – 190 µm, 0.0025 to 0.0075 inches |
| Auto Cutter | Factory Option (CLE321CG) |
| Indicators/Controls | Feed/Setting button and two LEDs (Power & Status) |
| Emulation | Cross-Emulation™ - automatically switching between Zebra® ZPL-II® and Datamax®. CBI Basic Interpreter for programmers. EPL emulation coming soon. |
| CPU | NA |
| Memory | 16MB Flash (User area 4MB), 32MB SDRAM (User area 4MB) |
| Sensors | Adjustable gap & black mark sensors |
| Interfaces | 10/100 Ethernet (LAN) with LinkServer™, USB 2.0, Serial RS232C |
| Driver available | Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others |
| Software Utilities | Label Design Software |
| Power Supply | Auto Switching 100-240V 50/60Hz |
| Power Consumption | 60W typical power consumption when printing DOE VI / COC Tier 2 compliant (less than 0.15W no-load consumption) |
| External Dimensions (WxDxH) | 178 x 266 x 173 mm |
| Weight | 2.6 Kg 2.82 Kg with Cutter |
| Operating Environment | Temperature: 5 to 40 °C Humidity: 30 to 85% (non-condensing) |
| Storage Environment | Temperature: -20 to 50 °C Humidity: 10 to 90% (non-condensing) |
| EMC/Safety Standards | CE(EMC), FCC Class A, CB and CCC, NOM, S-Mark, C-tick |

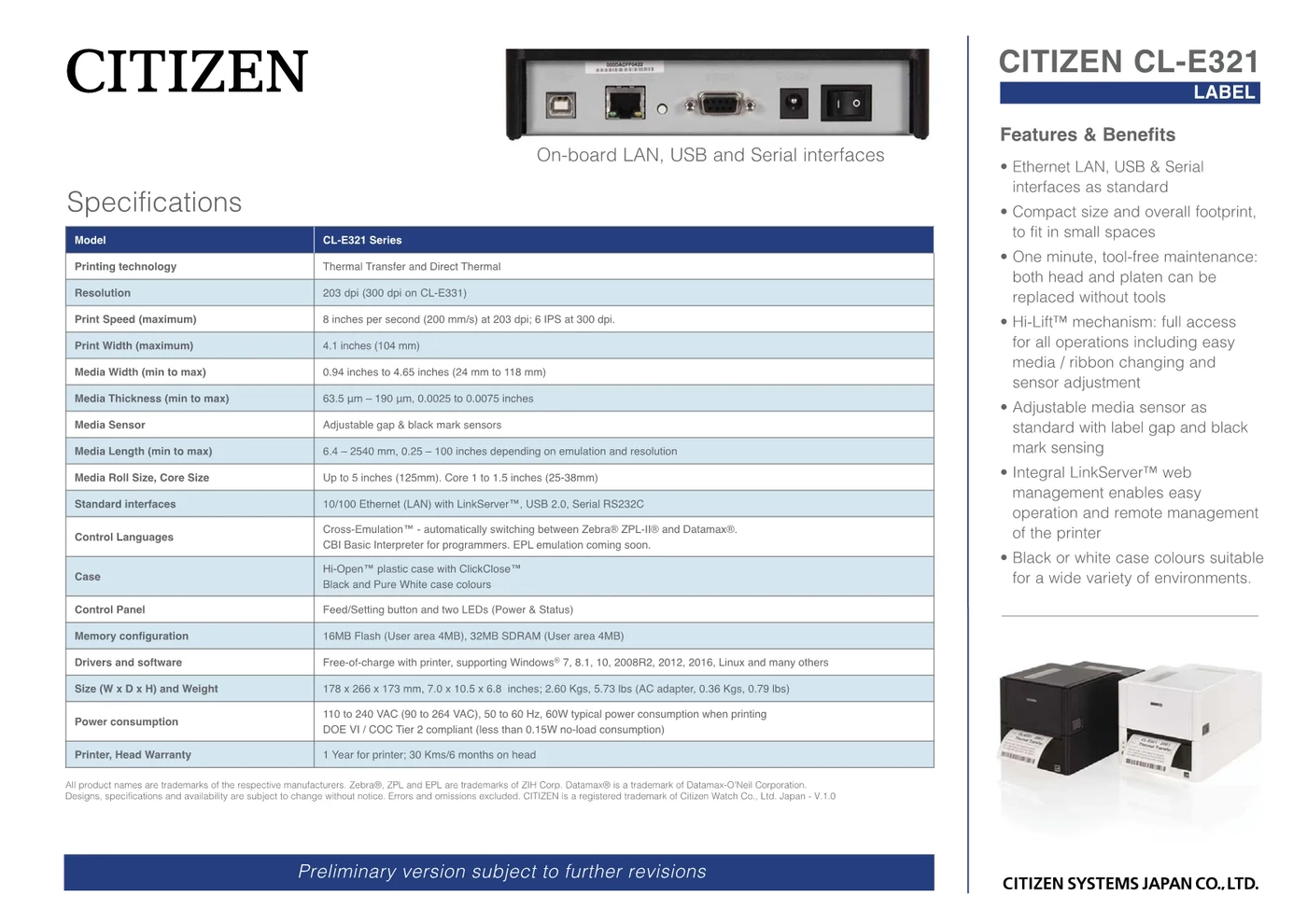

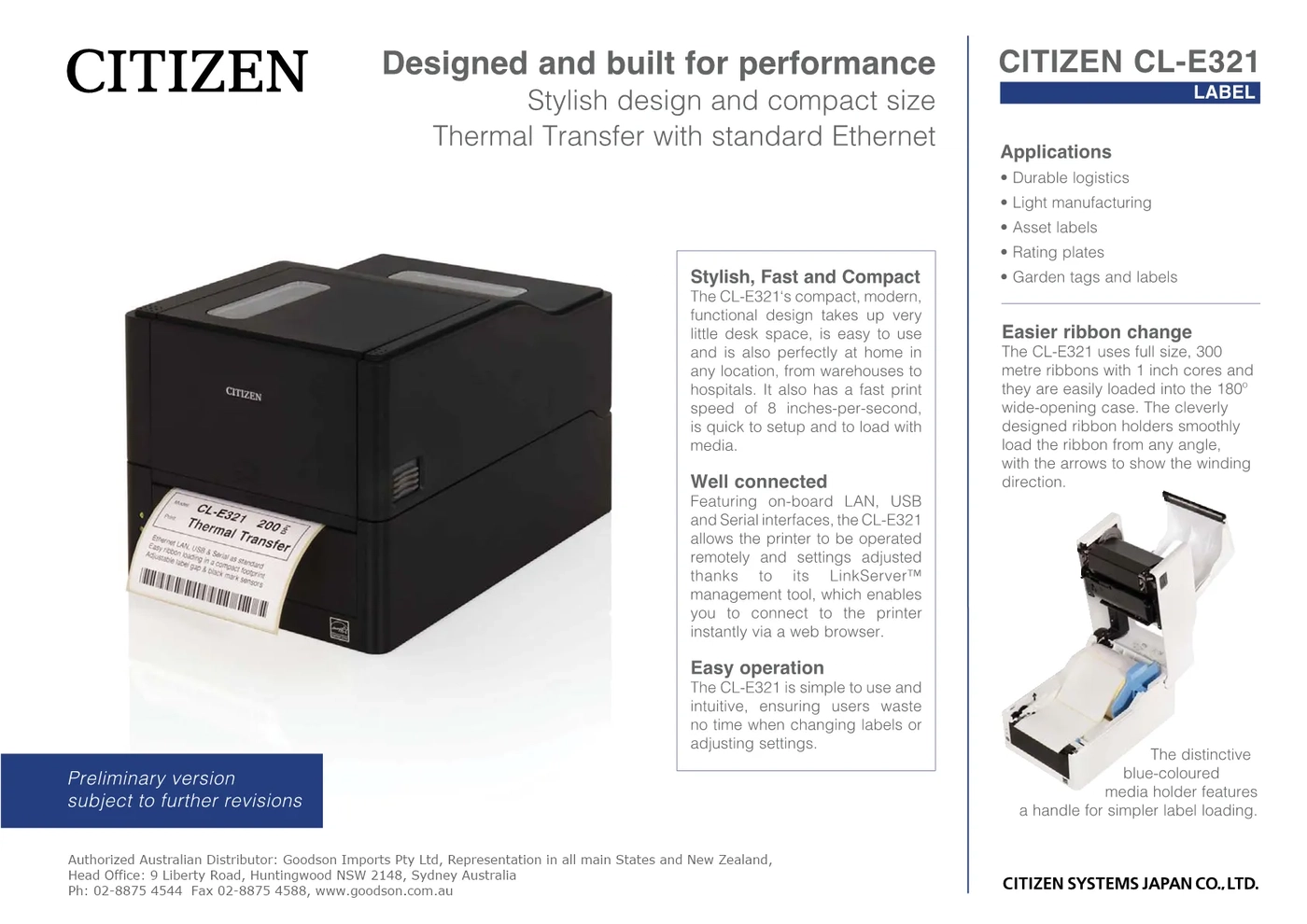

CL-E321_Datasheet.pdf
