New Zealand Stock & Warranty
All our products are New Zealand stock and come with a full manufacturer's warranty
CLE-300 4" Direct thermal Label Printer 203 dpi, 200 mm/sec, Fixed Cutter, USB, Ethernet & RS232 Interface, Black, USB Cable included
- Direct Thermal Label Printer
- Paper load: Front access for all operations including media and ribbon changing
- Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)
- Paper thickness: Paper thickness up to 0.150mm
- Case colour: Available in black or white
- Media sensor: Adjustable media sensor, Black mark sensor, Label gap sensor
| Printing Method | Direct Thermal |
| Printing Width | Max. 104 mm |
| Printing Length | 6.4 to 2540 mm depending on emulation |
| Dot Pitch | CLE-300: 8 x 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | CL-E300 Max. 200 mm/s - 8 ips |
| Font | Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4 *3: The OCR font may have a low recognition rate according to the reader. *4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation. |
| Character Table/Code Pages | See User Manual (page 55 under Symbol set) |
| Bar-code Type | Datamax® emulation: Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS Zebra® emulation: Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39 |
| Paper feed method | Friction Feed |
| Media Type | Roll, fanfold (Continuous media, die-cuts media, continuous tags, copntinuous tickets) |
| Media width | Min. 24 mm to Max. 118 mm |
| Paper Roll Diameter | Max Ø 125 mm with 25.4 to 38 mm Core |
| Media Tickness | Min. 0.0635 mm to Max. 0.190 mm |
| Auto Cutter | CL-E300CG Fixed guilotine cutter |
| Indicators/Controls | Power & Status (3 Colour) LED Feed & Setting Button Feed Button can be Programmed to repeat Power Switch |
| Emulation | CITIZEN original language Datamax® Programming language Zebra® programming language Auto detect |
| CPU | 32-bit RISC processor at 216 Mhz |
| Memory | 16 Mb of Flash ROM, 4Mb available to user 32 Mb of SDRAM, 4Mb available to user |
| Sensors | Cover Open sensor Upper & Lower media sensors: Label gap (see through), Notch (see through) Registration mark (rear printed black mark) Continuous media (no sensing, except media out) Peeler and Cutter sensors when installed |
| Interfaces | USB 2.0 Full Speed (12 Mbps) Serial: RS232C compliant, 9-pin D-type, 1200 115200 baud LAN: 100Base-TX, 10Base-TX, 2 indicators, test Button |
| Driver available | Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others |
| Software Utilities | All the traditional Citizen Menus Includes ‘specials’ and extra commands VuePrint™ configuration commands Citizen Configuration Utility LinkServer™ Web Configuration & Monitoring |
| Power Supply | External Adapter AC Input 110-240V 50/60Hz DC Output 24V 2.5A ENERGY STAR® qualified printer |
| Power Consumption | Power consumption: CEC LEVEL 6 compatible Standby power 1.5 to 1.7 W (depends on 110/240v and model) Printing power 63 to 70 W (depends on 110/240v and model) |
| External Dimensions (WxDxH) | 170W × 208D × 152H mm |
| Weight | 1.98 Kg approx. |
| Operating Environment | Temperature: 0 to 40 °C Humidity: 30 to 80% (non-condensing) |
| Storage Environment | Temperature: -20 to 60 °C Humidity: 5 to 85% (non-condensing) |
| EMC/Safety Standards | CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick/RCM, CCC,UL, C-UL |

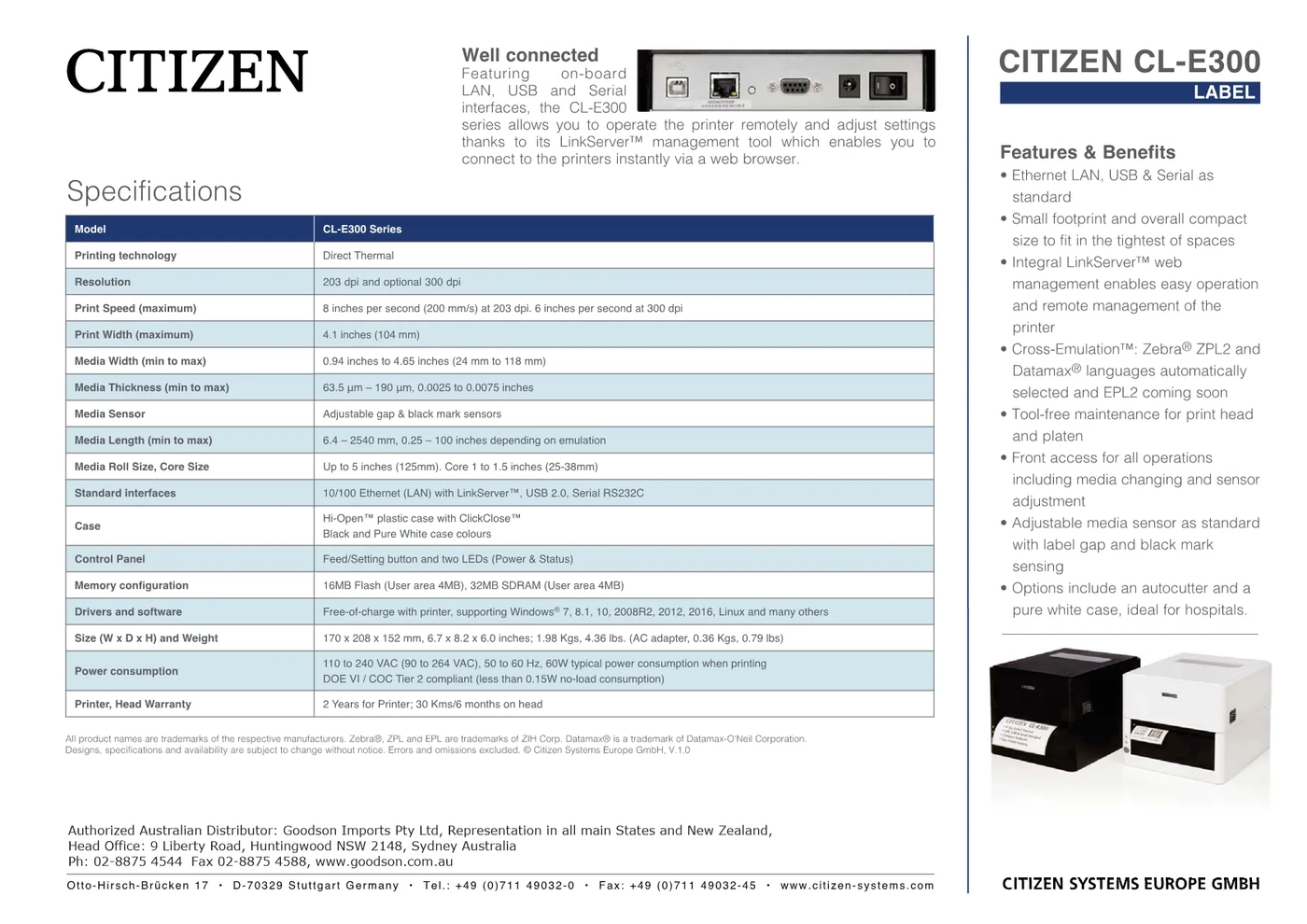

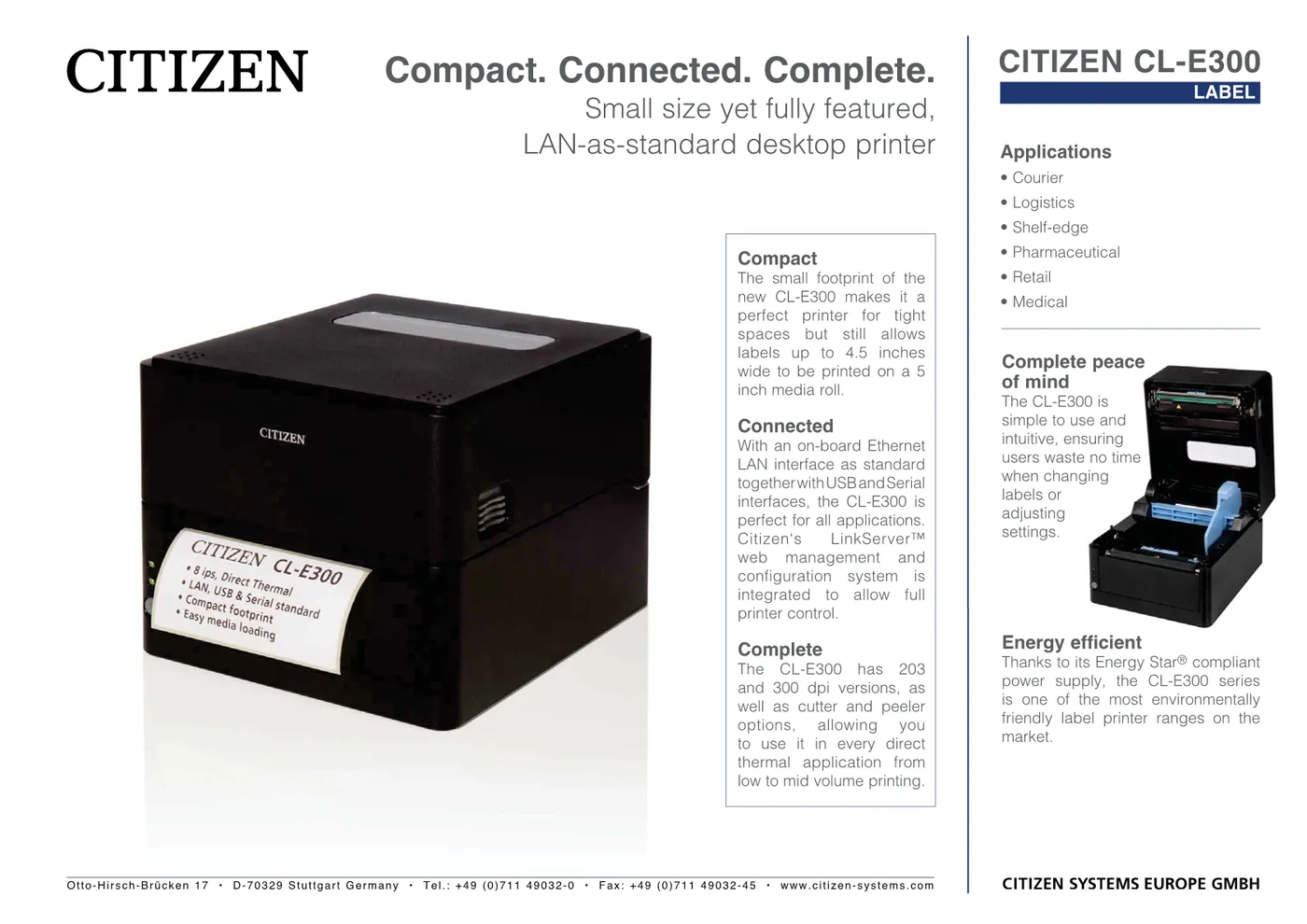

cle300_Datasheet.pdf
