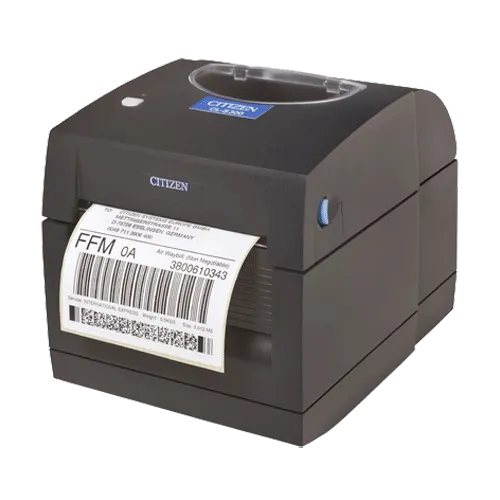

CITIZEN CLS-300 Direct Thermal Label printer, USB interface, Windows Driver, 108mm wide print. Black
- Direct Thermal Label Printer
- Easy set-up and media loading
- Integrated power supply
- Label dispenser for easy print, peel and apply as option
- Front exit - prevents damage from moisture or foreign objects
- Variable paper width - 1 inch (25.4 mm) - 4.6 inches (118.1 mm)
- Quick and easy media changing - drop-in paper loading
- Paper thickness up to 0.200mm
- Fast print out - 4 inches per second (100 mm per second)
- Large media capacity - holds rolls up to 5 inches (127 mm)
- Low space requirement - integrated power supply enables clean work station
| Printing Method | Direct Thermal |
| Printing Width | Max. 4.25 inches, 108 mm |
| Printing Length | Min. 38.1 mm |
| Dot Pitch | 8 × 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | Max. 102 mm/sec |
| Font | Resident Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26 & OCR A&B Bitmap fonts 90, 180 & 270° rotatable, Single Characters 90, 180 & 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts: 90, 180 & 270° rotatable |
| Character Table/Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8, UTF16 |
| Bar-code Type | N/A, uses Windows™ Graphical Interface, Barcodes need to be printed from windows driven application |
| Paper feed method | Friction Feed |
| Media Type | Continues Form, Gap Labels, Black Mark Sensing and punch hole sensing Label length set by auto sensing or programming |
| Media width | Min. 25.4 mm to Max. 118 mm |
| Paper Roll Diameter | Max Ø 127 mm with 25.4/38.1mm Core |
| Media Tickness | Min. 0.06 mm to Max. 0.2 mm |
| Auto Cutter | N/A |
| Indicators/Controls | one Tri-Colour LED Function key: FEED |
| Emulation | |
| CPU | 32 Bit RISC CPU |
| Memory | RAM (Standard Memory) 16.0 KB Total Flash (Non-Volatile Memory) 64.0 KB Total, 4.0 KB available to user |
| Sensors | Fixed transmisive sensor Reflective sensor, Central Aligned Label gap and Black Mark |
| Interfaces | USB Device |
| Driver available | WIN 8, WIN 7, WIN 2000, WIN Vista, WIN XP, WIN Server 2003/2008/2012 DLL: WIN 2000, XP & Vista |
| Software Utilities | Bartender Ultralite |
| Power Supply | Auto Switching 100-240V 50/60Hz. |
| Power Consumption | Max 1.6A |
| External Dimensions (WxDxH) | 168 × 222 × 178 mm |
| Weight | 2.0 Kg |
| Operating Environment | Temperature: 5 to 40 °C Humidity: 30 to 85% (non-condensing) |
| Storage Environment | Temperature: -20 to 50 °C Humidity: 10 to 90% (non-condensing) |
| EMC/Safety Standards | CE(EMC), FCC Class A, CB and CCC, UL, c-UL, C-tick |

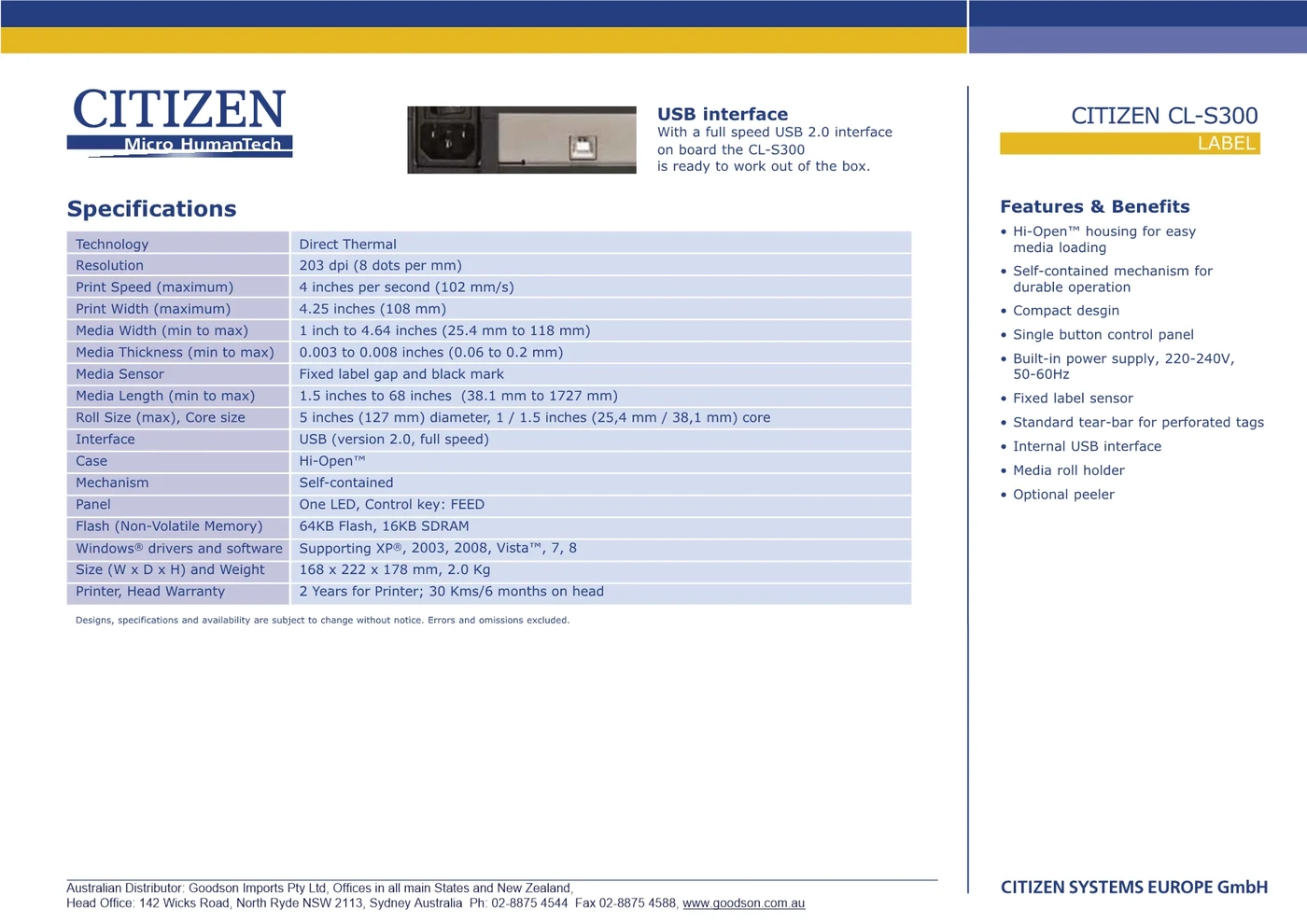

cls300_datasheet.pdf
