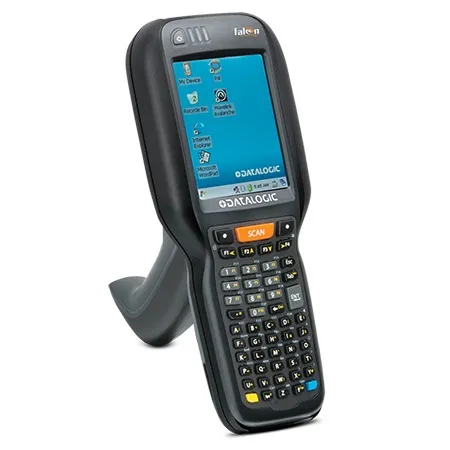

Falcon X4 Pistol Grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v2.1, 1GB RAM/8GB Flash, 52-Key Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU
Leveraging well-known ergonomics and the elegant design of the Falcon product line, the Falcon X4 mobile computer represents the next generation of Datalogic’s flagship product. The Falcon X4 mobile computer is ideal for both Retail and Logistics applications both on the store floor and in the back office/warehouse.
Datalogic core technologies for data capture enable top scanning performance in reading any kind of 1D and 2D codes. Communicate over a superior TI 802.11 a/b/g/n radio with CCX v4 compliance and MIMO antenna technology for improved connectivity and coverage, or through wired standards including USB Hi-Speed, RS-232, Modem and Ethernet. Bluetooth® v4 provides support for the new low energy mode (BLE) and for improved voice recognition via wide band audio on Android models.
The Falcon X4 mobile computer is fully compatible with previous Falcon X3+ accessories and with most any existing CE applications. The Falcon X4 mobile computer represents full protection for past investments of our end users and partners, but it also enables a new path to innovation and to the recent industry trends with the Android™ version (also upgradable from Windows® WEC7 models).
* Generic image used.
Specifications
Processor
TI OMAP4 @ 1 GHz
Operating Platform
Microsoft Windows Embedded Compact 7 (WEC7) or Android v4.4
Development Environment
WEC7: Datalogic Windows SDK™
Android: Datalogic Android SDK, Xamarin SDK
Android: Datalogic Android SDK, Xamarin SDK
Software Utilities
APPLICATIONS: Pal Application Library pre-licensed (WEC7 only)
CONFIGURATION & MAINTENANCE: Wavelink Avalanche® pre-licensed (WEC7 only), 42 Gears SureLock pre-licensed for device lockdown (Android only); SOTI MobiControl (optional), Datalogic xPlatform Utility (DXU) pre-licensed, Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
BROWSER: SureFox locked web browser pre-licensed for WEC7 and Android models
TERMINAL EMULATION: Wavelink® Terminal Emulation™ pre-licensed (for WEC7 models only); StayLinked SmartTE (for Android); Wavelink Velocity (for Android)
CONFIGURATION & MAINTENANCE: Wavelink Avalanche® pre-licensed (WEC7 only), 42 Gears SureLock pre-licensed for device lockdown (Android only); SOTI MobiControl (optional), Datalogic xPlatform Utility (DXU) pre-licensed, Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
BROWSER: SureFox locked web browser pre-licensed for WEC7 and Android models
TERMINAL EMULATION: Wavelink® Terminal Emulation™ pre-licensed (for WEC7 models only); StayLinked SmartTE (for Android); Wavelink Velocity (for Android)
Memory
System RAM:1GB
Flash: 8GB (partially used for firmware and reserved data)
Flash: 8GB (partially used for firmware and reserved data)
Memory Expansion
Micro-SD card slot: Compatible with Micro SDHC cards up to 32 GB (user accessible)
Scan Options
2D IMAGER (STANDARD RANGE) Megapixel sensor for extended range; White LED Illumination Optical Resolution: 1D codes: 3 mils; 2D codes: 6.6 mils Depth of Field (typical): 4.5 to 74 cm / 1.7 to 29.1 in (13 mil/EAN), depending on bar code density and type
1D IMAGER 2500 pixel sensor; Sharp green LED scan line Optical Resolution: 2.5 mils (linear codes) Depth of Field: 4.0 to 74 cm / 1.5 to 29.1 in (13 mil/EAN), depending on bar code density and type
EXTRA LONG RANGE IMAGER (2D XLR) Coming soon
SCAN WINDOW All scan engines feature Corning® Gorilla® Glass 3 scan window
1D IMAGER 2500 pixel sensor; Sharp green LED scan line Optical Resolution: 2.5 mils (linear codes) Depth of Field: 4.0 to 74 cm / 1.5 to 29.1 in (13 mil/EAN), depending on bar code density and type
EXTRA LONG RANGE IMAGER (2D XLR) Coming soon
SCAN WINDOW All scan engines feature Corning® Gorilla® Glass 3 scan window
Symbologies supported
Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS, Postnet
STACKED CODES: GS1 Composite Codes UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS, Postnet
STACKED CODES: GS1 Composite Codes UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite
Keyboards
Polycarbonate hard cap keyboards with backlight; 29-key numeric or 52-key alphanumeric with discrete navigation
Audio
Integrated microphone, high-volume speaker
Display
Reflective TFT daylight readable color display, 240 x 320 pixels in diagonal, 65K colors, backlight, touchscreen
Camera
N/A
I/O Ports
Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps
Ethernet or Modem: via single-slot dock (external module)
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Ethernet or Modem: via single-slot dock (external module)
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco CCX v4 compliant
Bluetooth wireless technology v4 with BLE (Android models)
Bluetooth v2.1 + EDR (WEC7 models)
Bluetooth wireless technology v4 with BLE (Android models)
Bluetooth v2.1 + EDR (WEC7 models)
Battery
Removable battery pack with rechargeable Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
Battery Life
N/A
Drop Specification
Withstands drops from 1.8 m / 6.0 ft onto concrete and 1500 random drops from 1.0 m / 3.3 ft according to IEC68-2-32 (Method 2)
Environmental Sealing
IP65
ESD Protection
N/A
Operating Environment
Operating: -20 to 50 ºC
Storage Environment
Storage: -30 to 70 ºC
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use. The Users Manual for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE: Complies to EU RoHS
LASER CLASSIFICATION VLD: Class 2 IEC/EN60825-10. Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice Number 50, dated June 24, 2007
LED CLASSIFICATION: Exempt Risk Group IEC/EN62471
ENVIRONMENTAL COMPLIANCE: Complies to EU RoHS
LASER CLASSIFICATION VLD: Class 2 IEC/EN60825-10. Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice Number 50, dated June 24, 2007
LED CLASSIFICATION: Exempt Risk Group IEC/EN62471
External Dimensions (WxDxH)
Handheld: 22.5 x 8.8 x 5.5 cm, 6.4 x 4.0 cm at keyboard
Pistol grip: 22.5 x 8.8 x 16.8 cm
Pistol grip: 22.5 x 8.8 x 16.8 cm
Weight
Handheld: 602.0 g
Pistol grip: 668.0 g
Pistol grip: 668.0 g
