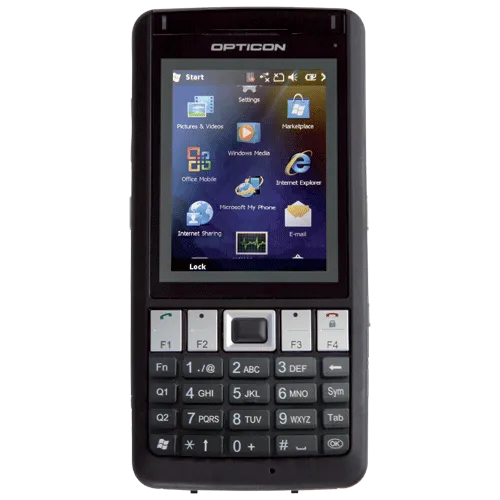

Opticon H-21 Portable Data Terminal with Numeric Keyb & Laser Scanner.
GPRS/Edge, 3G, next G, Wifi, Bluetooth, IRDA. Colour Camera, Windows Mobile
- Windows Mobile™ Portable Data Terminal
- Barcode Laser Scanner
- Can withstand multiple drops to concrete from 1.5 m
- IP-64 Rating
- 2.8 inch Colour LCD with Touch screen
- Windows Mobile® 6.5
- GPRS/EDGE (Quad Band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M)
- GPS: Integrated AGPS
- Wifi IEEE 802.11b/g
- Bluetooth Ver. 2.1 + EDR Class 2
- Colour Camera 3.2 Megapixels
.webp)
.webp)
.webp)
| Processor | Qualcomm MSM7225 528 Mhz |
| Operating Platform | Microsoft® Windows Mobile® 6.5 |
| Development Environment | |
| Software Utilities | |
| Memory | NAND FLASh: 256 MB RAM: 256 MB |
| Memory Expansion | User accessible microSD |
| Scan Options | after auto-focus activation (100 ms after triggering) IMAGE FORMAt: Bitmap, JPEG READInG PItCh AnGlE: -50 to 0°, 0 to +50° READInG SkEW AnGlE: -50 to 0°, 0 to +50° READInG tIlt AnGlE: 360° MIn. RESOlUtIOn At PCS 0.9: 0.127 mm / 5 mil Min. PCS VAlUE: 0.45 FIElD OF VIEW: horizontal 40°, Vertical 23° DEPth OF FIElD: At *QR Code* and Code 39, *45 - 65 mm / 1.77 - 2.56 in (0.127 mm / 5 mil)*, *45 - 230 mm / 1.77 - 9.06 in (0.381mm / 15 mil)*, 45 - 110 mm / 1.77 - 4.33 in (0.127 mm / 5 mil), 50 - 260 mm / 1.97 - 10.24 in (0.254 mm / 10 mil), 120 - 1000 mm / 4.72 - 39.37 in (1.0 mm / 39 mil) |
| Symbologies supported | Depending on Scan enging used: 1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC) Stacked codes; Micro-PDF417, PDF417 |
| Keyboards | 28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard |
| Audio | Speaker/microphone (mono), headset connector (stereo) |
| Display | Graphic Transflective TFT LCD with touch panel, 16-bit color with adjustable backlight Size: 2.8”, 480 x 640 pixels Mode: Portrait / Landscape |
| Camera | 3.2 megapixels, auto-focus, LED flash |
| I/O Ports | User accessible microSD I/O |
| Radio Options | USB: OTG, client and host IrDA: Ver. 1.3, 2400 bps - 115.2 kbps (SIR), 576 kbps - 1.152 Mbps (MIR) Bluetooth: Ver. 2.1 + EDR, class 2 W-LAN: WiFi, IEEE.802.11b/g Telecom: GPRS/EDGE (quad-band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M) GPS: Integrated AGPS |
| Battery | Lithium-Ion 3.7V 3060mAh |
| Battery Life | |
| Drop Specification | Withstands drops from 1.5 m onto concrete |
| Environmental Sealing | IP64 |
| ESD Protection | |
| Operating Environment | -10 ~ 50°C |
| Storage Environment | -40 to 60 °C |
| EMC/Safety Standards | |
| External Dimensions (WxDxH) | 67 x 135 x 22 mm |
| Weight | 235 g |
