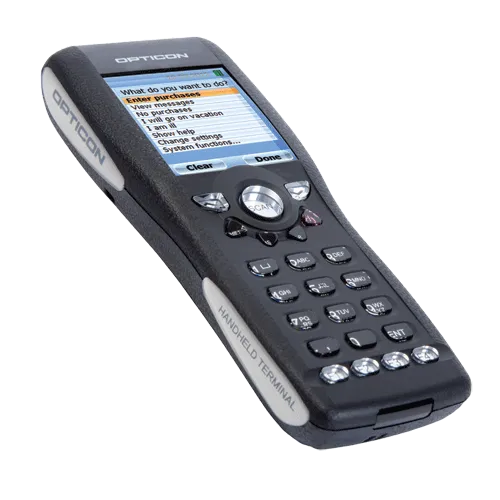

OPH-1005 Colour Batch Terminal, includes Battery
- Portable laser barcode scanner – 100 scans/second
- Memory - Nand flash: 128 MB flashROM: 4 MB Ram: 4 MB SRam
- Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
- Compact size and weight – 55 mm W x 136 mm L x 23 mm D and 140 grams.
- Batch scanner - stores data for later transfer via IrDA through a charging cradle (sold separately)
- Offers graphical color LCD with adjustable backlight
- Withstands drop of 1.5 meters to concrete
- Features rugged IP54 rating – comprehensive sealing against dust and moisture
- Delivers elegant design with soft grip for user comfort
- Two-year warranty
| Processor | RX62N 32-bit MCU |
| Development Environment | Programmable in C-language. Software development kit with compiler free downloadable |
| Operating Platform | Proprietory |
| Real-Time Clock | Supports year, month, day, hour, minute, second (leap year supported) |
| Memory | NAND Flash: 128 MB Flash ROM: 4 MB SRAM: 4 MB |
| Memory Expansion | N/A |
| Scan Engine | Laser scan Engine, 650nM visible Laser Diode Scan Rate: 100 scan/sec Mininimum PCS Value: 0.45 Depth of Field: 5 to 45 cm, depending on bar code density |
| Bar-code Type | Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite Codes, MicroPDF417, PDF417 |
| Keyboards | 23 keys total, 12 keys alpha-numeric keypad, 2 navigation keys, 4 function keys, 3 control keys, 1 power key, 2 hot keys, 1 scan key |
| Audio | Buzzer |
| Display | TFT LCD QVGA color display with backlight SIZE: 2”, 320 x 240 pixels FONTSIZE: 6x6 / 6x12 / 8x8 / 8x16 / 12x24 dots |
| Camera | N/A |
| I/O Ports | IRDA in Cradle |
| Radio Options | IrDA: ver. 1.2, Baudrate 1200 bps - 115.2 kbps, FiR Ready |
| Battery | Rechargeable battery: Lithium-Ion Polymer 3.7V 1100mAh backup battery: Lithium (CR2032) |
| Battery Life | Ca. 40 hours (1 scan/10 sec) |
| Environmental Sealing | IP54 |
| Mechanical Shock | Withstands drops from 1.5 m onto concrete |
| ESD Protection | |
| External Dimensions (WxDxH) | 136 x 55 x 23 mm |
| Weight | 140g with Battery |
| Operating Environment | -10 ~ 50°C RH 20-85% non condensing |
| Storage Environment | -20 ~ 60°C RH 20-85% non condensing |
| Warranty | 1 Year Factory Warranty, |
| Product Compliance | C-Tick, CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
