CMP-30II 3" Bluetooth Thermal Mobile Printer, no MSR, iOS & Android Compatible
- Paper width: Paper width 80 mm
- Paper load: Quick and easy media changing - drop-in paper loading
- Printing Speed: High speed printing - up to 100 mm per second
- Mobile-POS ready
- Powerful - High capacity batteries for a full day's operation (status indicated by LED)
- Robust: Robust - exceeds IP42 and survives multiple drops of 1.2 metres
- Integral tear bar to cut labels at the gap
- Energy: AC adapter as standard designed to recharge batteries on-board the printer or via an external optional charging station Lithium Ion battery technology and easy-to-change power packs
| Printing Method | Line Thermal Dot Printing |
| Printing Width | 72mm |
| Dot Pitch | 203 dpi |
| Printing Speed (Max.) | Up to 100 mm/Sec (Receipt) |
| Number of Columns | Font A - 48 columns Font B - 64 columns |
| Character Size | Font A: 12 x 24 Dots Font B: 9 x 17 Dots |
| Character Table/Code Pages | Alphanumeric characters, extension characters, 18 codepages, 14 international characters |
| Bar-code Type | 1D: EAN-8, EAN-13, UPC-A, UPC-E, ITF, CODE 39, CODABAR, CODE 93, CODE 128, 2D: PDF417, MicroPDF417, Maxicode, Datamatrix, AZTEC, TLC39, RSS14 |
| Line Spacing | 4.23mm |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll or Labels (Special Model) |
| Paper Width | 79.5mm +/-0.5 |
| Paper Roll Diameter | Max Ø 56 mm |
| Paper Thickness | 60 - 90um |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | N/A |
| Indicators/Controls | Power and Battery Charge & Error Indicator Paper Feed & Power Button |
| Emulation | Standard: ESC/POS, CPCL Command Compatible Factory Option: ZPLII Command Compatible |
| Memory | 8 Kbytes |
| Sensors | Paper End Sensor 2 x Reflective Sensor (Top & Bottom) Cover Open Sensor |
| Interfaces | Standard: USB, Serial (RS232), Optional: Bluetooth V4.2 Class 2, Wireless LAN 802.11a/b/g (Factory Options) |
| Driver available | Windows XP, Vista, Windows7/8/10 CUPS Linux Driver, CE Driver, iOS |
| Software Utilities | Windows POS Print SDK, Windows Embedded SDK, iOS SDK, Android SDK, CE SDK, Configuration Tool |
| Battery | Rechargeable Li-ion. Output 7.4V, 2600mAh On Full Charge: Continuous printing for up to 60 minutes (250 m), 48 Hours on Standby Charger Specifications: Input 100-240V AC, 50-60Hz, Output 8.4VDC 800~1400 mA |
| MSR | NA |
| External Dimensions (WxDxH) | 120 x 152 x 70 mm |
| Weight | Including Battery Approx. 640 g |
| Operating Environment | -10-50°C 30-80% RH None condensing |
| Storage Environment | -20-60°C 10-85% RH None condensing |
| Environmental Sealing | IP42 |
| Mechanical Shock | Multiple drops of 1.5m (6 faces) |
| Reliability | Printhead 50 km |
| EMC/Safety Standards | UL, FCC Class B, CE, C-Tick |

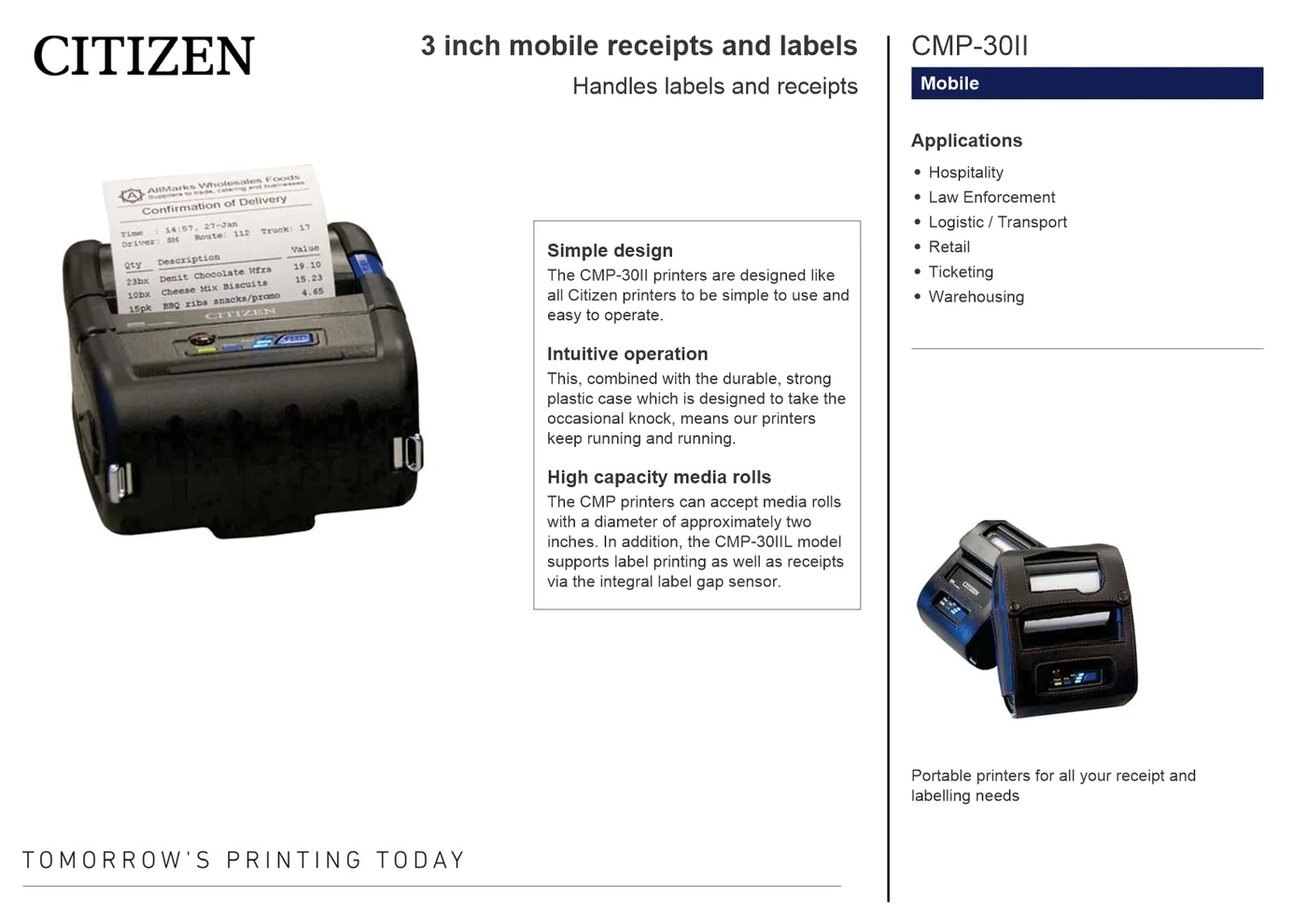

cmp30ii_brochure.pdf
