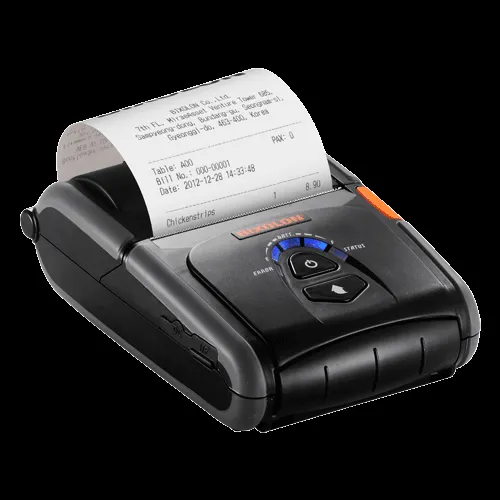

SPP-R300 Bluetooth 3" Mobile Printer, IOS Compatible
- 3" Portable Thermal Label Printer
- Compatible with mobile devices including iPhone, iPad (Optional MFi certified) and Android
- Versatile connectivity (WLAN, Bluetooth, etc.)
- One touch cover open and simple drop-in paper loading
- Handy yet robust design
- Water and dust resistant (IP54 with protective case)
- Long-lasting battery life
- Optional Integrated Card Reader (MSR)
- Linerless label printing (optional)
- Easily switch from receipt to label printing
- Low-temp (-15°C) printing with an integrated temperature sensor
- Faster printing speeds of up to 100 mm/sec (Receipt)
- Enhanced printing of fonts, graphics, and barcode symbologies
| Printing Method | Line Thermal Dot Printing |
| Printing Width | 80mm Paper: 72mm |
| Dot Pitch | 203 dpi |
| Printing Speed (Max.) | Up to 100 mm/Sec (Receipt) Up to 80 mm/Sec (Linerless) 12.5% pattern |
| Number of Columns | 80 mm Paper: Font A - 48 columns Font B - 64 columns Font C - 64 columns Korean: 24 columns Chinese: 24 columns |
| Character Size | Font A: 12 x 24 Dots Font B: 9 x 17 Dots Font C: 9 x 24 Dots Korean: 24 x 24 Chinese: 24 x 24 |
| Character Table/Code Pages | Alphanumeric: 95 Expanded Graphics 128x33 page International Character: 32 |
| Bar-code Type | 1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR & Code 93 2D: Data Matrix, MaxiCode, PDF417 & QR Code |
| Line Spacing | |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll or Labels |
| Paper Width | 80 ± 0.5mm |
| Paper Roll Diameter | Max Ø 50 mm |
| Paper Thickness | 0.07+/- 0.003 mm |
| Paper Supply Method | Easy Paper Loading, Drop in and Print |
| Auto Cutter | N/A |
| Indicators/Controls | Power and Battery Charge Indicator |
| Emulation | BXL/POS |
| Memory | 64Mbit SDRAM 32 Mbit FlashROM |
| Sensors | Paper End Sensor: Reflective Sensor Paper Cover open |
| Interfaces | StandardUSB V1.1 FS and Serial on Board Factory Option: Bluetooth V3.0 + EDR WLAN 802.11 b/g - WEP40/104, WPA1/2 (PSK, EAP) |
| Driver available | Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver |
| Software Utilities | iOS SDK, Android SDk, Windows SDK, Symbian SDK |
| Battery | Rechargeable 7.4V Li-ion 2600mAh Charging time: up to 4 Hrs |
| MSR | Factory Option 3 Track Optional Certifications: DUKPT, T-DES |
| External Dimensions (WxDxH) | 110 x 162 x 58.3 mm |
| Weight | Including Battery Approx. 550 g Including MSR & Battery Approx. 565 g |
| Operating Environment | -15-50°C 10-80% RH None condensing |
| Storage Environment | -30-70°C 10-80% RH None condensing |
| Environmental Sealing | IP54 (With Protective case) |
| Mechanical Shock | Drop Spec 1.5m |
| Reliability | Printhead 50 km Battery: Rechargeable up to 300 times |
| EMC/Safety Standards | UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick |
spp-r300_brochure.pdf
