GCUBE-102D 203dpi 3" Thermal Printer with USB, RS232 & Ethernet Interface, USB and RS232 cable included, Black
- The smallest receipt printer in the world
- 180dpi or 203dpi (special order) available
- Fast speed printing up to 250mm/sec

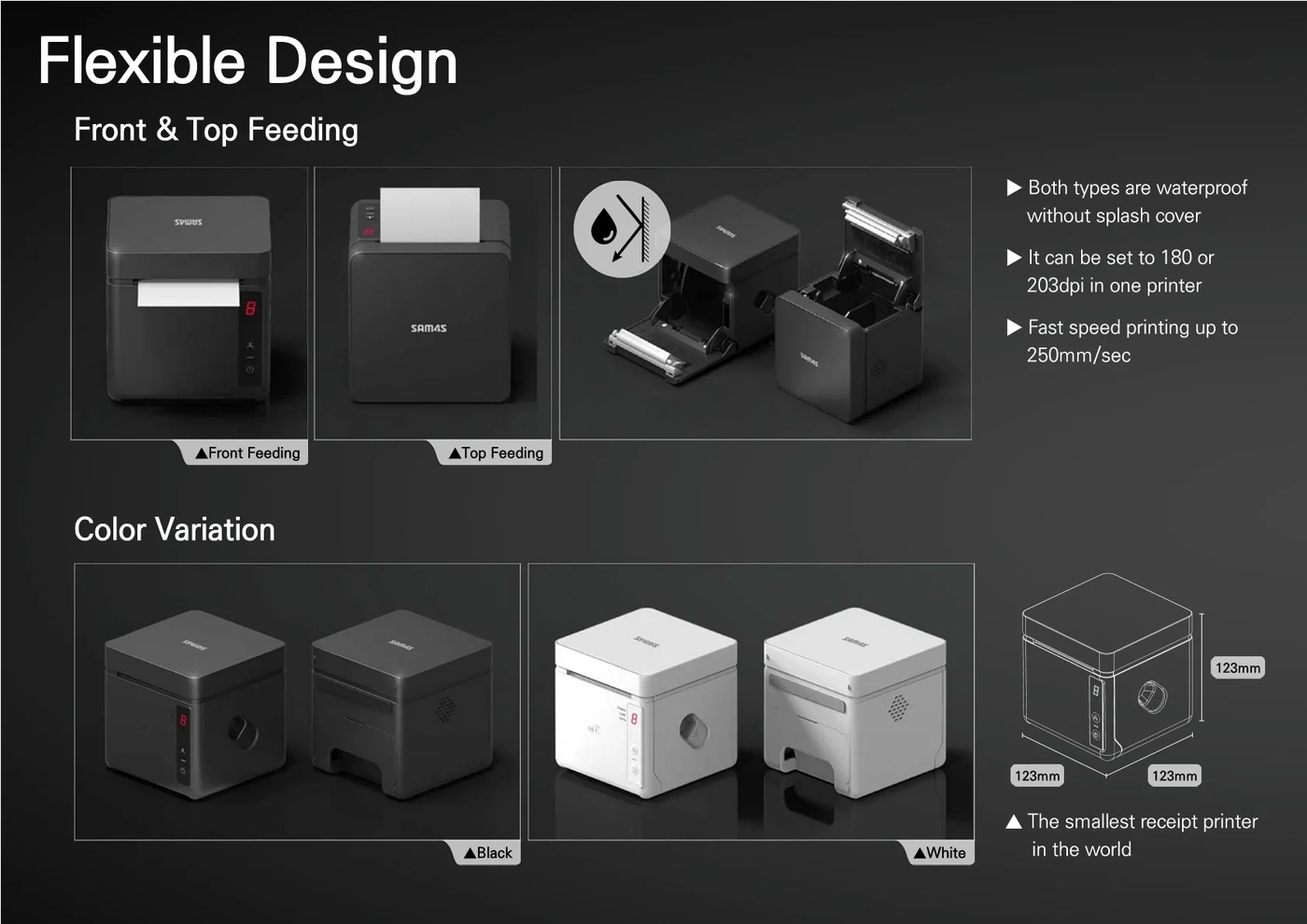

- Flexible Design: Front & Top Feeding (Waterproof)
- in Front feeding possition, loading is also from the front
- Available in Black or White (Special Order)
- Flexible Composition
- Setting : LED notification, NFC function
- Installation : Wall type, Under shelf type (optional Bracket available)
- Various Interface models:
- USB+Serial, USB+Serial+Ethernet, USB+Bluetooth+Ethernet, USB+Wi-Fi+Ethernet
- JAM Free
| Printing Method | Line thermal printing |
| Printing Width | 80mm Paper 72mm 58mm Paper 54mm |
| Dot Pitch | GCUBE102: 203 dpi GCUBE100: 180 dpi (Special Order) |
| Printing Speed (Max.) | Max. 250 mm/sec on 80 mm Mono Paper Max. 150 mm/sec on 58 mm Mono Paper Max. 100 mm/sec on Two Colour Paper |
| Number of Columns | On 80mm paper Font A : 48 (Gcube-102), 42 (Gcube-100), Font B : 64 (Gcube-102), 56 (Gcube-100), |
| Character Size | Font A:42/21 Font B:56/28 |
| Character Table/Code Pages | N/A |
| Bar-code Type | UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code |
| Line Spacing | N/A |
| Paper feed method | Friction |
| Paper Type | Thermal Paper Roll |
| Paper Width | 80+0/-1 mm, 58 mm+0/-1 |
| Paper Roll Diameter | Max Ø 83.0mm |
| Paper Thickness | 0.06 - 0.08mm |
| Paper Supply Method | Easy Paper Loading either from top or front, Drop in and Print |
| Auto Cutter | Guillotine Type |
| Indicators/Controls | Power light, LED for operation codes, Feed Button, on/off Switch |
| Emulation | ESC/POS Star |
| Print Buffer | 64KB |
| NV Memory | 8Mbyte Data Memory |
| Sensors | Paper end Sensor Printer Cover open Sensor |
| Drawer Port | 1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
| External Device Port | N/A |
| Interfaces | USB, RS232 & Ethernet USB, RS232 & Parallel (Special Order) USB, Ethernet & Wifi USB, Ethernet & Bluetooth |
| Driver available | Windows driver, OPOS, JPOS (Linux & Mac), Cups driver (Linux & Mac) |
| Software Utilities | Utility Program |
| Power Supply | External AC Adapter Rated input: AC 90 to 264 V, 50/60 Hz Rated output: DC24 V, 2.5 A |
| Power Consumption | |
| External Dimensions (WxDxH) | 123w × 123d × 123h mm |
| Weight | 0.75 Kg |
| Operating Environment | 5-45°C, 10-90% RH |
| Storage Environment | -10-50°C, 10-90% RH |
| Reliability | Mechanism: 70Mil Lines Thermal Print head: 150Km Auto Cutter: 1.5 Mil cuts |
| EMC/Safety Standards | FCC class A, CE marking, TUV/GS, CE, CB, cTUVus |
Gcube-leaflet_web.pdf
