Zebra Dock Vehicle W/ANT Pass THRU R12

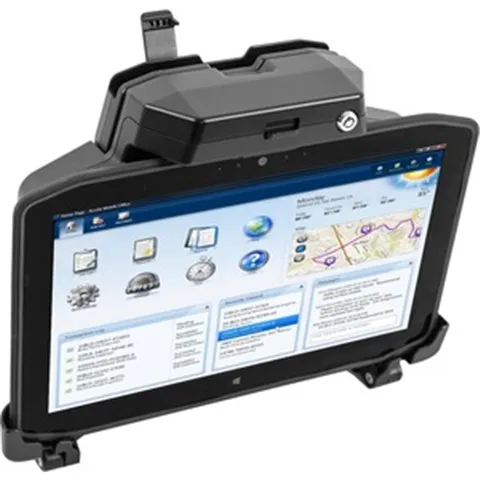

The XSLATE R12-Series Secure Mobile Dock is designed to be a low profile and rugged docking solution for in-vehicle and forklift mounting of the XSLATE R12 Tablet. It offers full port replication (HDMI, VGA, 4 USBs, Ethernet and Serial), full high definition output for up to two external monitors, an optional Pass-Through antenna module and is convenient to mount using a standard VESA hole pattern. A secure latch offers simple, one-handed docking and undocking of Xplore Tablet PCs and the integrated key lock provides increased security.

The XSLATE R12-Series Secure Mobile Dock is designed to work with a family of other R12 accessories. The XSLATE R12 tablet can be docked with the XSLATE Companion Keyboard and the XSLATE R12 SlateMate attached.

Specifications:

• USB 3.0 (2), USB 2.0 (2), Ethernet RJ-45 port (10/100/1000 Mbps), HDMI port, VGA port, Serial port, Audio In/Out, DC-In port (Note: GNSS not available when external monitor in use)
• Low profile and light weight
• Dockable with Slatemate™ attached
• Dockable with XSLATE Companion Keyboard
• 75mm x 75mm VESA hole-pattern for alternative mounting options
• Optional Pass-Through Antenna Module: Greatly increased signal performance of wireless communications. Connections provided for LTE, WiFi (optional), and GPS signals. This module provides connection to the tablet and SMA connectors for external antennas (purchased separately).
