CITIZEN CLS-521Direct Thermal Label Printer. Approx. 150 mm/sec, Dual Emulation Datamax/Zebra, USB + RS232 interface. Black
- Durable Direct Thermal Desktop Label Printer
- Metal print mechanism
- Citizen’s unique Hi-Lift™ design
- An adjustable media sensor efficiently handles unique label configurations
- Auto sensing between ZEBRA® ZPL® & Datamax® DPL™ emulation standard
- 16 MB of DRAM and 4 MB of flash memory
- Complete connectivity with serial and USB standard.
- Optional internal Parallel or Ethernet interfaces are available.
- Internal power supply
- Label-making software included
- Optional peeler and cutter modules
| Printing Method | Direct Thermal |
| Printing Width | Max. 104 mm |
| Printing Length | Max. 812.8 mm |
| Dot Pitch | 8 × 8 dots / mm (203 dpi) |
| Printing Speed (Max.) | Max. 15.2 mm/s - 6 ips |
| Font | Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4 *3: The OCR font may have a low recognition rate according to the reader. *4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation. |
| Character Table/Code Pages | See User Manual (page 55 under Symbol set) |
| Bar-code Type | Datamax® emulation: Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM, UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS Zebra® emulation: Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet, Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39 |
| Paper feed method | Friction Feed |
| Media Type | Roll, fanfold (Continuous media, die-cuts media, continuous tags, copntinuous tickets) |
| Media width | Min. 19.5 mm to Max. 118 mm |
| Paper Roll Diameter | Max Ø 127 mm with 25.4 to 76 mm Core Min. media core when using labels 50.8 mm |
| Media Tickness | Min. 0.0635 mm to Max. 0.254 mm |
| Auto Cutter | Optional quilotine Cutter |
| Indicators/Controls | Power/Error LED (Green/Red) LCD Panel 4 Function keys: FEED, STOP, PAUSE, MODE/REPEAT Buzzer Power Switch |
| Emulation | CITIZEN original language Datamax® Programming language Zebra® programming language Auto detect |
| CPU | 32 Bit RISC CPU |
| Memory | Flash ROM 4MB (User area: 1MB) Datamax® emulation: SDRAM 16MB(User area: 1MB) ZEBRA® emulation: SDRAM 16MB(User area: 4MB) |
| Sensors | Transparent sensor, Reflective sensor& Label peeling sensor (if optional Peeler is used) |
| Interfaces | Standard with USB 1.1 (Full speed) & RS-232C (2400, 4800, 9600, 19200, 38400,57600,115200 bps) interface Optional Ethernet or Paralllel IEEE1284 (compatible, Nibble, ECP mode) or Wireless Lan. |
| Driver available | Drivers by Seagull |
| Software Utilities | Bartender Ultralite |
| Power Supply | Internal 220-240V 50/60Hz ENERGY STAR® qualified printer |
| Power Consumption | Max. 1.2A |
| External Dimensions (WxDxH) | 231W × 289D × 186H mm |
| Weight | 3.6 Kg approx. |
| Operating Environment | Temperature: 0 to 40 °C Humidity: 30 to 80% (non-condensing) |
| Storage Environment | Temperature: -20 to 60 °C Humidity: 5 to 85% (non-condensing) |
| EMC/Safety Standards | CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick/RCM, CCC,UL, C-UL |

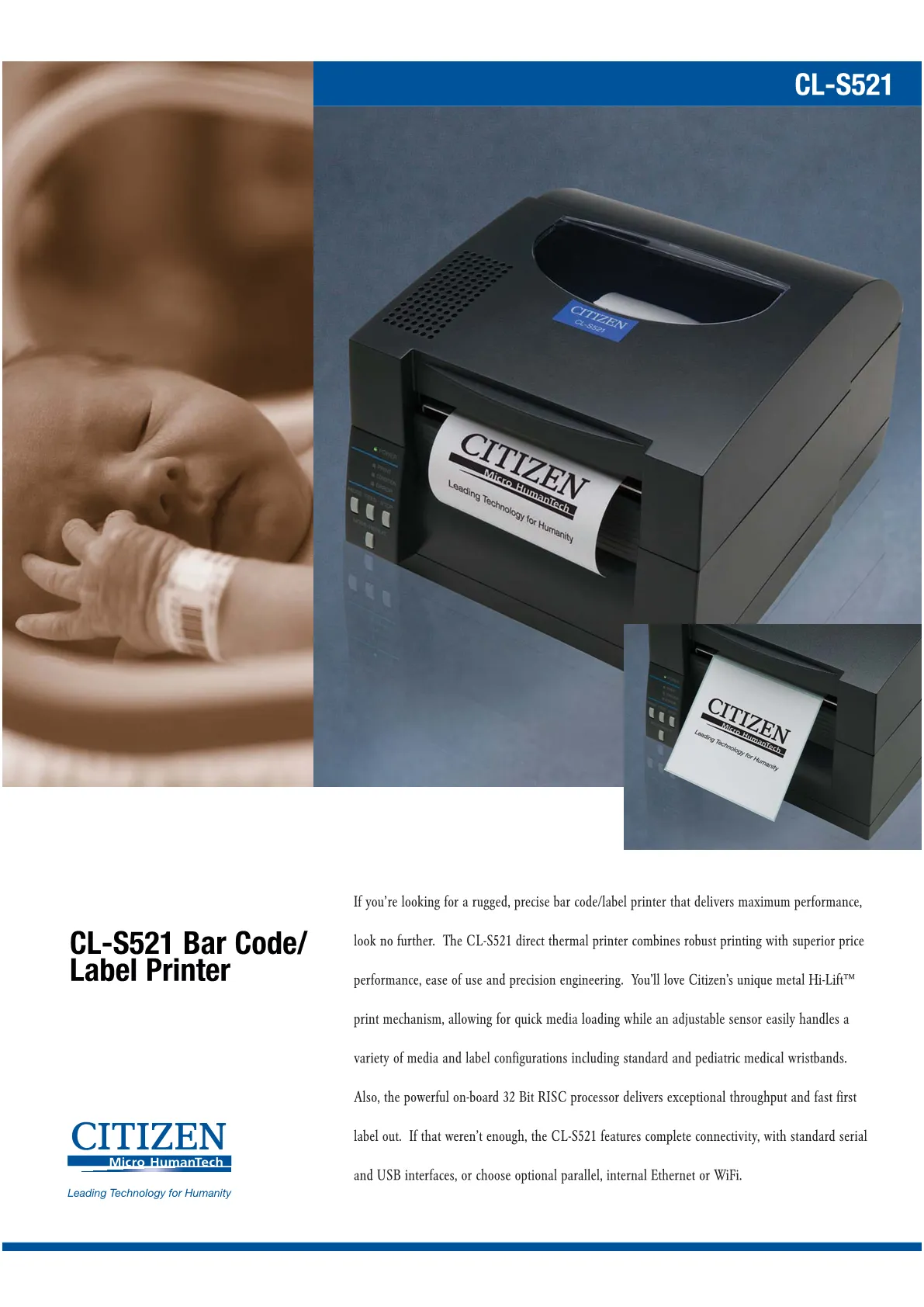

cls521_datasheet.pdf
